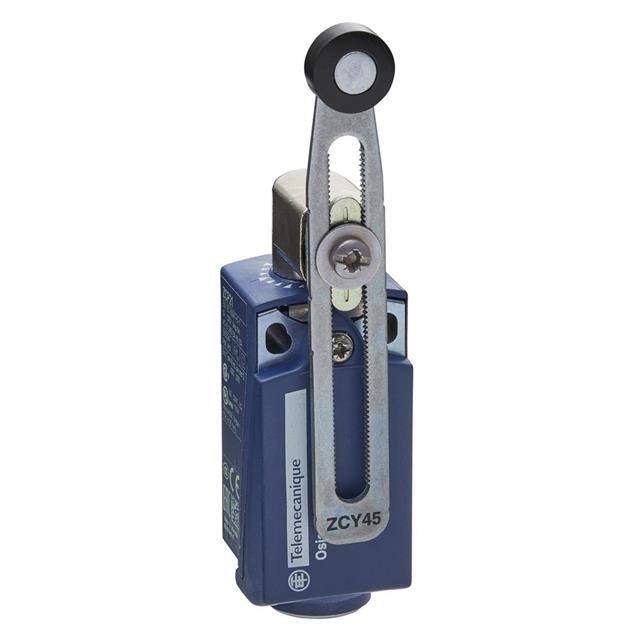

XCKP2145P16 Real Image
Same model may have multiple batches, images only for reference.

XCKP2145P16

Part No XCKP2145P16
Manufacturer Schneider Electric
Catalog Snap Action, Limit Switches
Description LIMIT SWITCH, LIMIT SWITCHES XC / Switch DPST-NO/NC Chassis Mount
Datasheet
XCKP2145P16 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Schneider Electric
Series XCKP
Package Box
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Current Rating (Amps) 3A (AC), 270mA (DC)
Voltage Rating - AC 240 V
Voltage Rating - DC 250 V
Actuator Type Side Rotary, Adjustable Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP66/IP67 - Dust Tight, Water Resistant, Waterproof
Temperature Range - Operating -25°C ~ 70°C
Electrical Life 5,000,000 Cycles
Mechanical Life 10,000,000 Cycles
MSL Level 1 (Unlimited)
Other Names 4008-XCKP2145P16
Standard Package 1
Win Source Part Number 1067685-XCKP2145P16
Ultra Librarian 3D Model Ultra Librarian XCKP2145P16 CAD Model

Description

The Schneider Electric XCKP2145P16 is a limit switch manufactured.

  • Circuit: DPST-NO/NC
  • Switch Function: On-mom, Off-mom
  • Actuator Type: Side Rotary
  • Actuator: Adjustable Roller
  • Electrical Life: 5,000,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Voltage Rating: 240V AC and 250V DC
  • Current Rating: 3A AC and 270mA DC
  • Operating Temperature: -25°C to 70°C
  • Ingress Protection: IP66/IP67
  • Mounting: Chassis Mount
  • Package: Box
