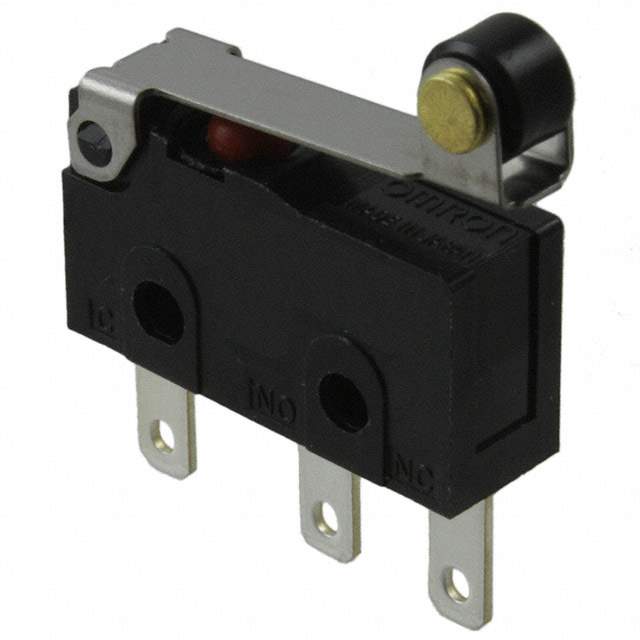

D2SW-3L2T Real Image
Same model may have multiple batches, images only for reference.

D2SW-3L2T

Part No D2SW-3L2T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 60gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2SW3L2T
Standard Package 500
Win Source Part Number 1200966-D2SW-3L2T
Ultra Librarian 3D Model Ultra Librarian D2SW-3L2T CAD Model

Description

The Omron Electronics Inc-EMC Div D2SW series limit switch is a high-quality product manufactured by Omron Electronics Inc-EMC Div. The manufacturer is Omron Electronics Inc-EMC Div.

  • Termination Style: Quick Connect 0.110" (2.8mm)
  • Ingress Protection: IP67
  • Voltage Rating AC: 125 V
  • Voltage Rating DC: 30 V
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever or Roller
  • Electrical Life: 200,000 cycles
  • Operating Force: 60gf
  • Mechanical Life: 5,000,000 cycles
  • Release Force: 6.118gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.040" (1.0mm)
  • Operating Position: 0.571" (14.5mm)
  • Mounting: Chassis Mountable
  • Temperature Range: -40°C to 85°C
  • Alternative Parts: D2SW3L2T
