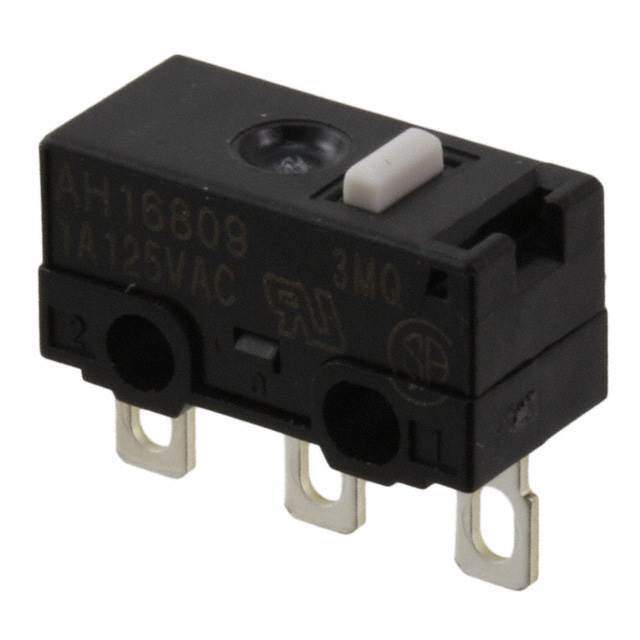

AH16809-A Real Image
Same model may have multiple batches, images only for reference.

AH16809-A

Part No AH16809-A
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electric Works
Series AH1
Package Tube
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 74gf
Release Force 10gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.010" (0.25mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.217" (5.5mm)
Electrical Life 30,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number AH16809
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names AH16809A,255-4106-5,-AH16809,AH16809-A-ND
Standard Package 50
Win Source Part Number 1183197-AH16809-A
Ultra Librarian 3D Model Ultra Librarian AH16809-A CAD Model

Description

The Panasonic Electric Works AH16809-A is a limit switch with a circuit of SPDT and an on-mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 30V
  • Operating Force: 74gf
  • Mechanical Life: 1,000,000 Cycles
  • Package: Tube
  • Mounting: Chassis Mount
  • Pretravel: 0.020" (0.5mm)
  • Differential Travel: 0.005" (0.12mm)
  • Overtravel: 0.010" (0.25mm)
