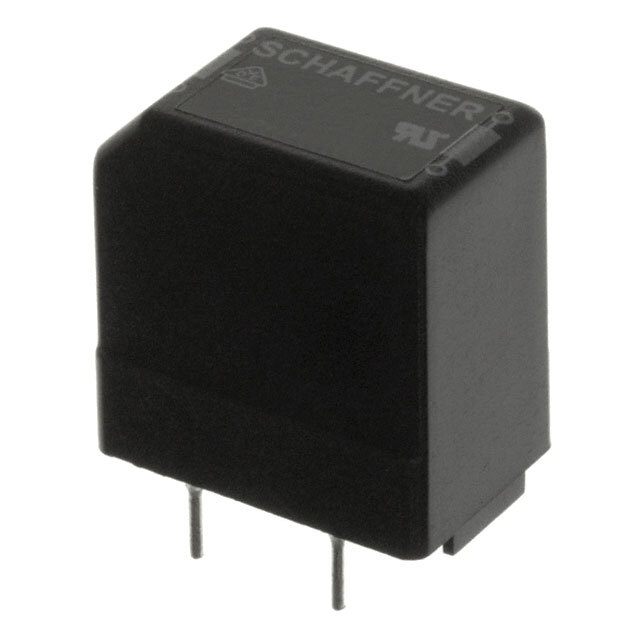

Same model may have multiple batches, images only for reference.
RN214-1.2-02-10M Schaffner EMC Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RN214-1.2-02-10M

Part No RN214-1.2-02-10M
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 10MH 1.2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 195mOhm (Typ)
Voltage Rating - AC 300V
Operating Temperature -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) 0.996" (25.30mm)
Package / Case Vertical, 4 PC Pin
Ultra Librarian 3D Model Ultra Librarian RN214-1.2-02-10M CAD Model
