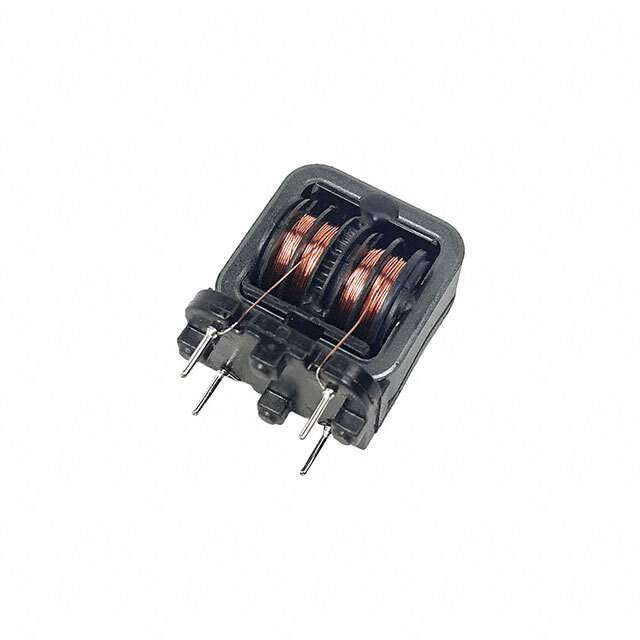

SSR21NVS-M30041 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-M30041

Part No SSR21NVS-M30041
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 4.1MH 3A 2LN TH / 4.1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 3A DCR 70mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 4.1 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names UALS21V3004100,399-19566
Standard Package 450
Win Source Part Number 1116904-SSR21NVS-M30041
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-M30041 CAD Model

Description

The Kemet SSR21NVS-M30041 is a common mode choke with a voltage rating of 250V and a current rating of 3A.

  • Voltage Rating: 250V
  • Current Rating: 3A
  • Inductance: 4.1 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 70mOhm
  • Height (Max): 1.063" (27.00mm)
  • Package / Case: Vertical, 4 PC Pin
  • Temperature Range: -25°C to 120°C
  • Dimension: 0.866" L x 0.630" W (22.00mm x 16.00mm)
