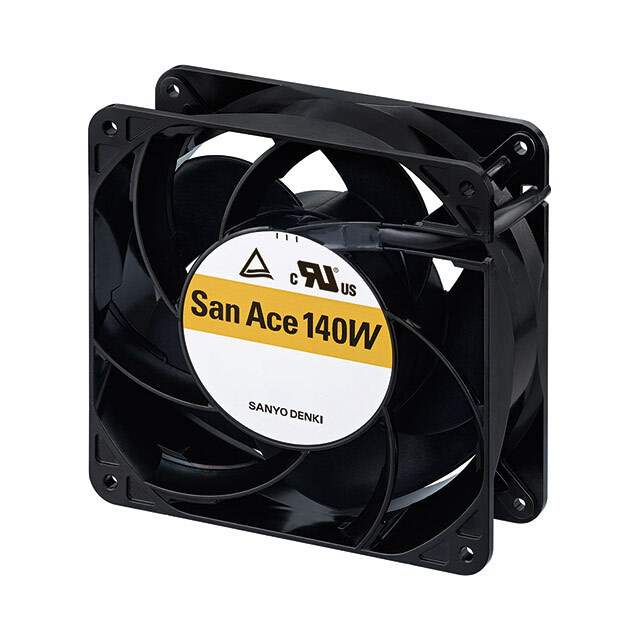

9WL1424P5G001 Real Image
Same model may have multiple batches, images only for reference.

9WL1424P5G001

Part No 9WL1424P5G001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 140X51MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 140mm L x 140mm H Ball 318.0 CFM (8.90m³/min) 4 Wire Leads
Datasheet
9WL1424P5G001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 140W
Package Bulk
Voltage - Rated 24VDC
Size / Dimension Square - 140mm L x 140mm H
Width 51.00mm
Air Flow 318.0 CFM (8.90m³/min)
Static Pressure 2.630 in H2O (655.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 69.0dB(A)
Power (Watts) 62 W
RPM 7500 RPM
Termination 4 Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency cURus, TUV
Weight 1.653 lb (750.0 g)
Current Rating (Amps) 2.58A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 60°C
Base Product Number 9WL1424
Standard Package 12
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1337279-9WL1424P5G001
Ultra Librarian 3D Model Ultra Librarian 9WL1424P5G001 CAD Model

Description

The San Ace 140W DC Brushless Fan is a high-quality fan designed for thermal management in electronic devices.

  • Features: Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
  • Termination: 4 Wire Leads
  • Packaging: Bulk
  • Shape: Square
  • Size / Dimension: 140mm L x 140mm H
  • Ingress Protection: IP68
  • Voltage Range: 20.4 ~ 27.6VDC
  • Power (Watts): 62 W
  • Lifetime @ Temp.: 100000 Hrs @ 60°C
  • Weight: 1.653 lb (750.0 g)
  • Air Flow: 318.0 CFM (8.90m³/min)
  • Static Pressure: 2.630 in H2O (655.1 Pa)
  • Noise: 69.0dB(A)
  • Speed: 7500 RPM
  • Approvals: cURus, TUV
