Same model may have multiple batches, images only for reference.

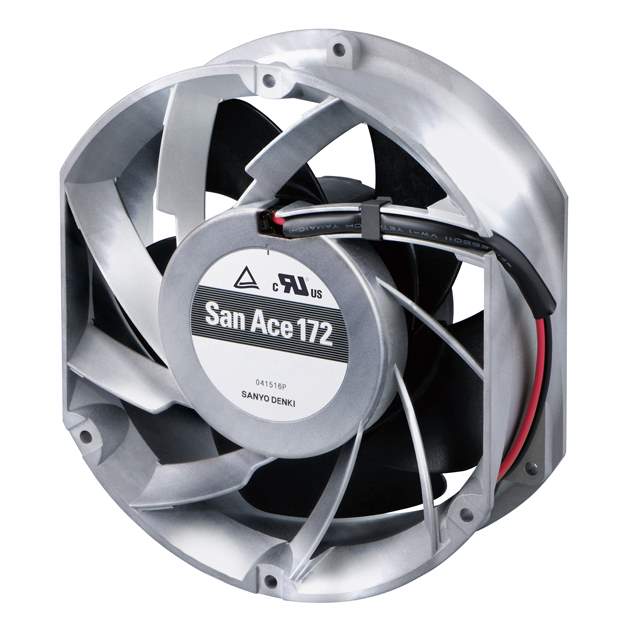

9HV5724P5H001 Real Image
Same model may have multiple batches, images only for reference.

9HV5724P5H001

Part No 9HV5724P5H001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 172X51MM 24VDC WIRE / Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 434.0 CFM (12.15m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 172
Package Box
Voltage - Rated 24VDC
Size / Dimension Rectangular/Rounded - 172mm L x 150mm H
Width 51.00mm
Air Flow 434.0 CFM (12.15m³/min)
Static Pressure 4.020 in H2O (1001.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 77.0dB(A)
Power (Watts) 120 W
RPM 8000 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency cURus, TUV
Weight 1.8 lb (800.0 g)
Current Rating (Amps) 5.00A
Voltage Range 16 ~ 30VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9HV5724
Standard Package 8
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339115-9HV5724P5H001
Ultra Librarian 3D Model Ultra Librarian 9HV5724P5H001 CAD Model

Description

The San Ace 172 DC Brushless Fan is a high-quality fan designed for thermal management in electronic devices.

  • Features: PWM Control and a Speed Sensor (Tach)
  • Leads: 4 Wire Leads
  • Package: box
  • Shape: rectangular/rounded
  • Dimensions: 172mm L x 150mm H
  • Voltage Range: 16 ~ 30VDC
  • Power Rating: 120 W
  • Lifetime: 40000 hours @ 60°C
  • Weight: 1.8 lb (800.0 g)
  • Air Flow: 434.0 CFM (12.15m³/min)
  • Static Pressure: 4.020 in H2O (1001.3 Pa)
  • Noise Level: 77.0dB(A)
  • Speed: 8000 RPM
  • Approvals: cURus and TUV
