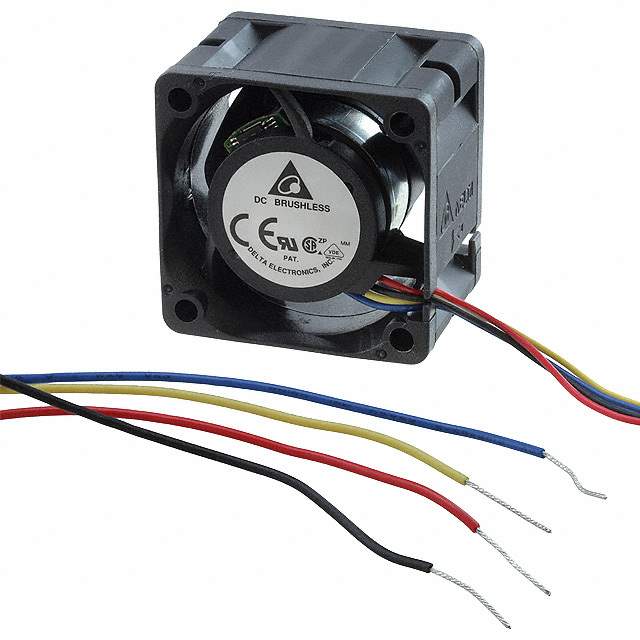

PFB0412EHN-TP06 Real Image
Same model may have multiple batches, images only for reference.

PFB0412EHN-TP06

Part No PFB0412EHN-TP06
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 21.8 CFM (0.610m³/min) 4 Wire Leads
Datasheet
PFB0412EHN-TP06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series PFB
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 21.8 CFM (0.610m³/min)
Static Pressure 1.431 in H2O (356.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 54.5dB(A)
Power (Watts) 6 W
RPM 16000 RPM
Termination 4 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.104 lb (47.17 g)
Current Rating (Amps) 0.500A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number PFB0412
Standard Package 288
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339851-PFB0412EHN-TP06
Ultra Librarian 3D Model Ultra Librarian PFB0412EHN-TP06 CAD Model

Description

Delta Electronics 1339851-PFB0412EHN-TP06 is a DC brushless fan that is part of the PFB series.

  • Size: 40mm L x 40mm H
  • Width: 28.00mm
  • Voltage Range: 10.8 ~ 13.2VDC
  • Rated Voltage: 12VDC
  • Power: 6W
  • Lifetime: 50000 hours @ 40°C
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise Level: 54.5dB(A)
  • Air Flow: 21.8 CFM (0.610m³/min)
  • Static Pressure: 1.431 in H2O (356.5 Pa)
  • Frame Material: Plastic
  • Blade Material: Plastic
