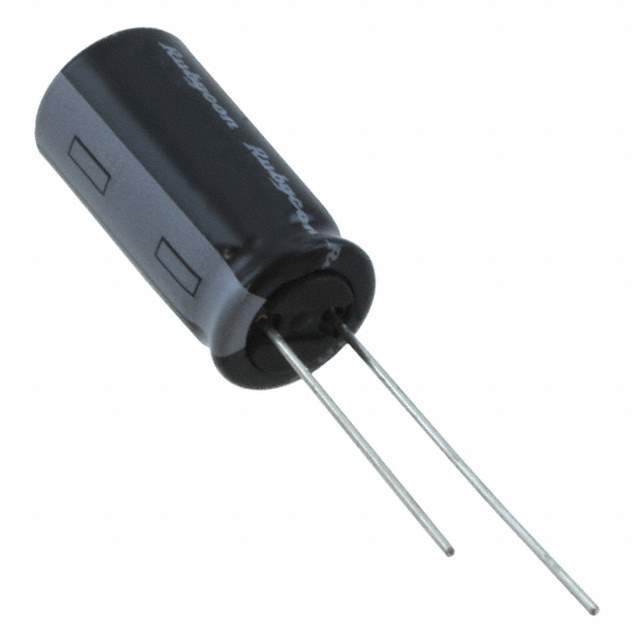

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 525 mA @ 120 Hz
Ripple Current @ High Frequency 630 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1280,35PX470MEFC10X125
Standard Package 1,000
Win Source Part Number 1329407-35PX470MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 35PX470MEFC10X12.5 CAD Model

Description

The Rubycon capacitor is a radial, can type capacitor with a capacitance of 470 µF and a voltage rating of 35 V.

  • Manufacturer: Rubycon
  • Capacitance: 470 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): not applicable
  • Ripple Current (Low Frequency): 525 mA @ 120 Hz
  • Ripple Current (High Frequency): 630 mA @ 10 kHz
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height: 0.551" (14.00mm) when seated
  • Diameter: 0.394" (10.00mm)
  • Application: General-Purpose
  • Lifetime: 2000 hours @ 105℃
