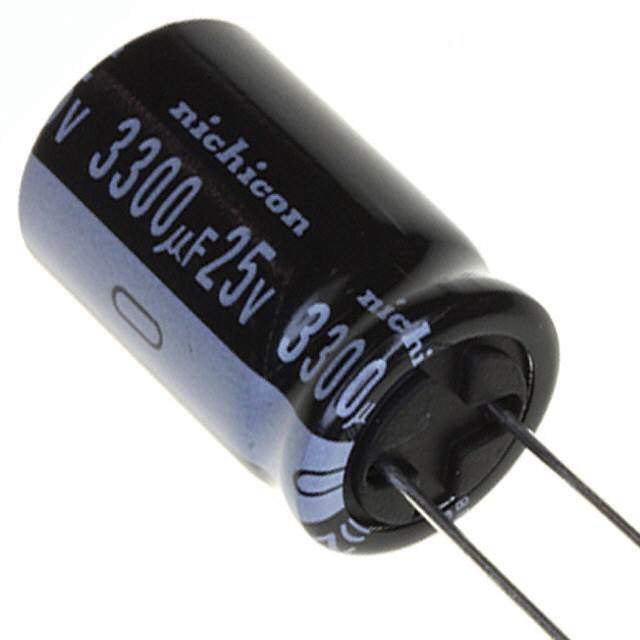

UVZ1E332MHD

Name: UVZ1E332MHD
Brand: Nichicon
SKU: 777873
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVZ1E332MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3300UF 20% 25V RADIAL / Cap Aluminum Lytic 3300uF 25V 20% (16 X 25mm) Radial 7.5mm 1400mA 1000h 105°C Bulk
Datasheet	UVZ1E332MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UVZ
Packaging	Bulk
Capacitance	3300μF
Tolerance	±20%
Voltage Rating DC	25V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	1.4A @ 120Hz
Ripple Current - High Frequency	1.61A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Dimension	0.630" Dia (16.00mm)
Height - Seated (Maximum)	1.063" (27.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	777873-UVZ1E332MHD
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UVZ
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UVZ1E332MHD CAD Model

Description

The Nichicon UVZ1E332MHD is a radial, can-type capacitor that is designed to operate in temperatures ranging from -55°C to 105°C.

Temperature Range: -55°C to 105°C
Mounting Type: Through Hole
Packaging: Bulk
Series: UVZ
Capacitance: 3300μF
Tolerance: ±20%
Applications: General
Ripple Current: 1.4A @ 120Hz
Ripple Current: 1.61A @ 10kHz
Part Status: Active
Category: Capacitors
Popularity: Medium
Package Quantity: 1
MSL Level: 1 (Unlimited)
