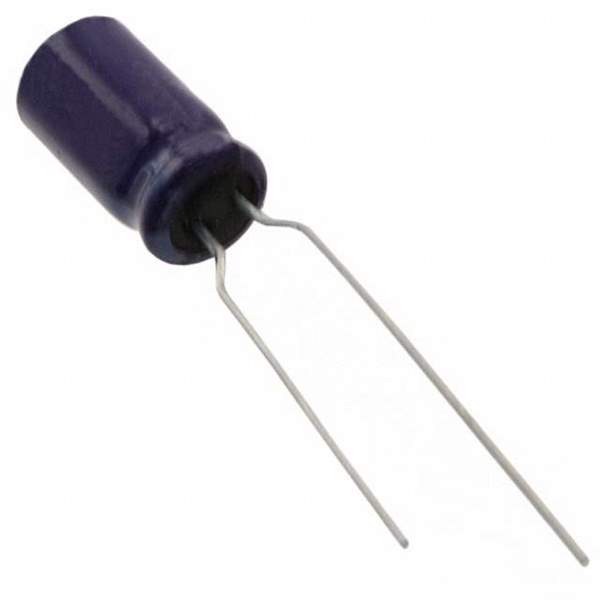

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Active
Capacitance 100μF
Tolerance ±20%
Voltage Rating 35V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 210mA @ 120Hz
Ripple Current - High Frequency 357mA @ 10kHz
Lead Spacing 0.098" (2.50mm)
Height - Seated (Max) 0.480" (12.20mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 119004-ECA-1VM101
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian ECA-1VM101 CAD Model

Description

Product Overview: ECA-1VM101

The ECA-1VM101 offers unmatched performance in energy storage applications with its robust design, making it an excellent choice for projects needing reliable capacitors.

  • Applications:
    • Power supply smoothing
    • Energy storage in renewable systems
    • Audio and video equipment
  • Features and Benefits:
    • High-capacitance value
    • Long operational life
    • Reliable performance in high-frequency applications
    • Wide voltage range compatibility
  • Additional Details:
    • Compact and lightweight design
    • Temperature stability: -55°C to 105°C
    • Ideal for both consumer and industrial applications
