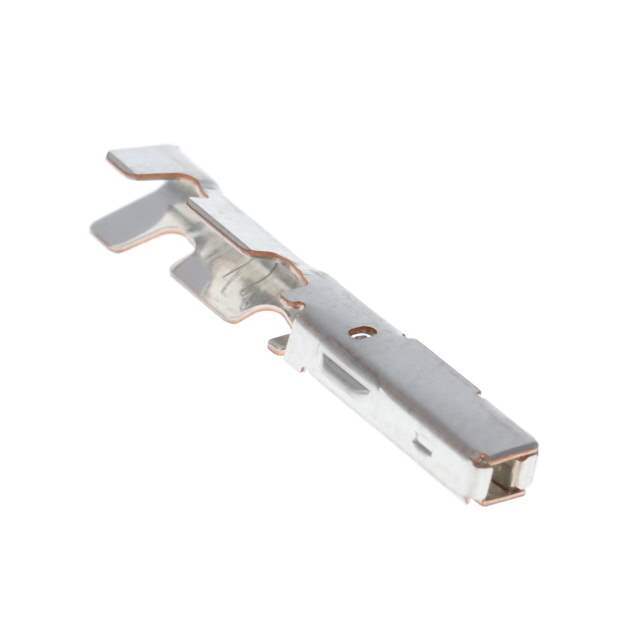

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1204077-M31S05K4FA
Manufacturer JAE Electronics
Category Connectors, Interconnects -Rectangular Connectors -Rectangular Connector Contacts
Series MX31
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Contact Finish Tin
Base Product Number M31S05K4
Ultra Librarian 3D Model Ultra Librarian M31S05K4FA CAD Model

Description

High density and non-water proof type of MX31 series is developed to meet the demands for compact and lighter connectors with multi pin counts, due to increase of<br />computerized control in automotives. Pitch of signal teminal is 2.2mm, and the pitch of power terminal is 3.2mm. Compact and 4row type and the variation of the number of temminal is from 70pos. to 135pos. (pin header) This connector meets with automotive specs. and the aplication is for Automotive EUC (Engine, transmission, etc)
