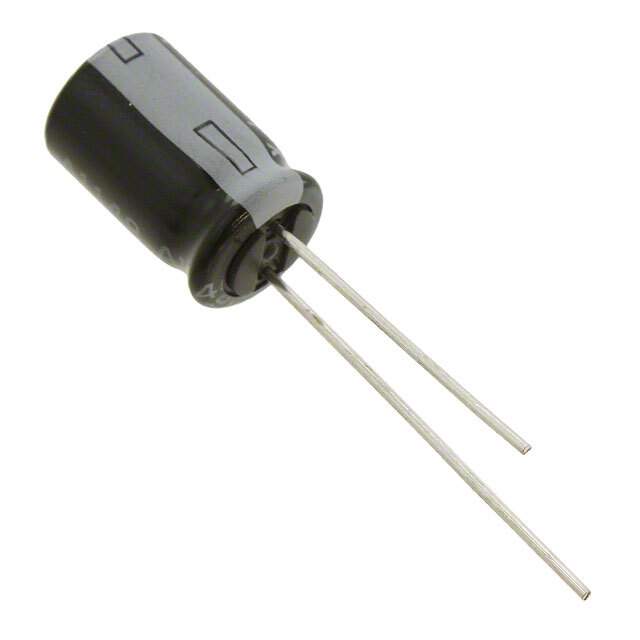

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 1189-2928
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307288-25ZLH470MEFC8X16
Ultra Librarian 3D Model Ultra Librarian 25ZLH470MEFC8X16 CAD Model

Description

The ZLH series from Rubycon is an aluminum electrolytic capacitor designed for use in general-purpose applications.

  • Capacitance: 470µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • Height: 0.689" (17.50mm)
  • Dimension: 0.315" Dia (8.00mm)
  • Lifetime: 8000 hours @ 105°C
  • Polarized: Yes
  • Mounting Type: Through-hole
  • Package: Radial, can package
  • Temperature Range: -40°C to 105°C
  • Standard Package: 1,000
