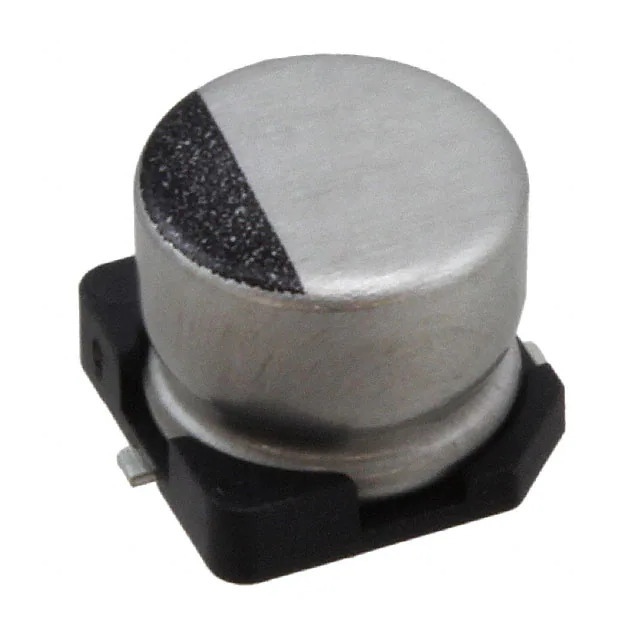

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SKV
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 118 mA @ 120 Hz
Ripple Current @ High Frequency 141.6 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360361-25SKV100M8X6.5
Ultra Librarian 3D Model Ultra Librarian 25SKV100M8X6.5 CAD Model

Description

The Rubycon SKV series aluminum electrolytic capacitor is a general-purpose component suitable for a wide range of applications.

  • Capacitance: 100µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 105°C
  • Package / Case: Radial, Can
  • Mounting Type: Surface Mount
  • Diameter: 0.315"
  • Height: 0.256"
  • Lifetime: 1000 Hours @ 105°C
  • Ripple Current - Low Frequency: 118mA @ 120Hz
  • Ripple Current - High Frequency: 141.6mA @ 10kHz
