Same model may have multiple batches, images only for reference.

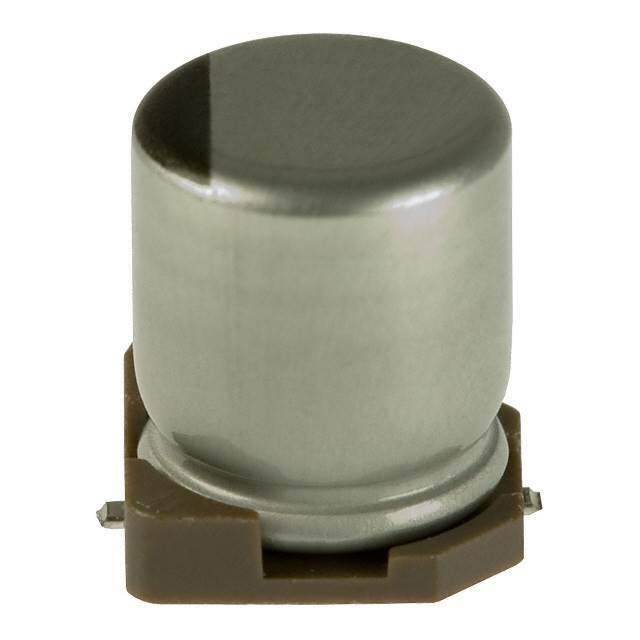

UUD1V680MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1V680MCL1GS

Part No UUD1V680MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 35V SMD / Cap Aluminum Lytic 68uF 35V 20% (6.3 X 7.7mm) SMD 280mA 2000h 105°C Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UUD
Packaging Reel package
Capacitance 68μF
Tolerance ±20%
Voltage Rating DC 35V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 140mA @ 120Hz
Ripple Current - High Frequency 280mA @ 100kHz
Impedance 340 mOhm
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 798937-UUD1V680MCL1GS
Popularity Medium
Supply and Demand Status Limited
Family Name UUD
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian UUD1V680MCL1GS CAD Model

Description

The Nichicon UUD1V680MCL1GS capacitor is a radial, can - SMD capacitor.

  • Capacitance: 68μF
  • Tolerance: ±20%
  • Voltage Rating: 35V
  • Ripple Current: 140mA @ 120Hz
  • Ripple Current: 280mA @ 100kHz
  • Impedance: 340 mOhm
  • Polarization: Polarized
  • Lifetime: 2000 Hrs @ 105°C
  • RoHS Compliance: Compliant
  • Supply and Demand Status: Limited
