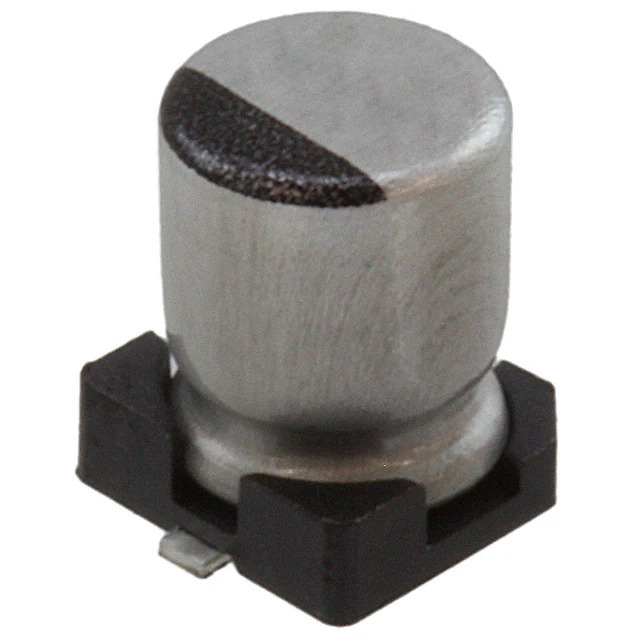

25SEV10M4X5.5 Rubycon
Same model may have multiple batches, images only for reference.

25SEV10M4X5.5

Part No 25SEV10M4X5.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 25V SMD / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 25 mA @ 120 Hz
Ripple Current @ High Frequency 37.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360147-25SEV10M4X5.5
Ultra Librarian 3D Model Ultra Librarian 25SEV10M4X5.5 CAD Model

Description

The Rubycon SEV series is a high-quality aluminum electrolytic capacitor designed for automotive applications.

  • Series: SEV
  • Application: Automotive
  • Capacitance: 10 µF
  • Voltage Rating: 25 V
  • Temperature Range: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Package / Case: Radial, Can - SMD
  • Mounting Type: Surface Mountable
  • Size / Dimension: 0.157" diameter (4.00mm)
  • Height - Seated (Max): 0.217" (5.50mm)
  • Ripple Current Low Frequency: 25 mA @ low frequency (120 Hz)
  • Ripple Current High Frequency: 37.5 mA @ high frequency (10 kHz)
  • Rating: AEC-Q200
