HM5149NL Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

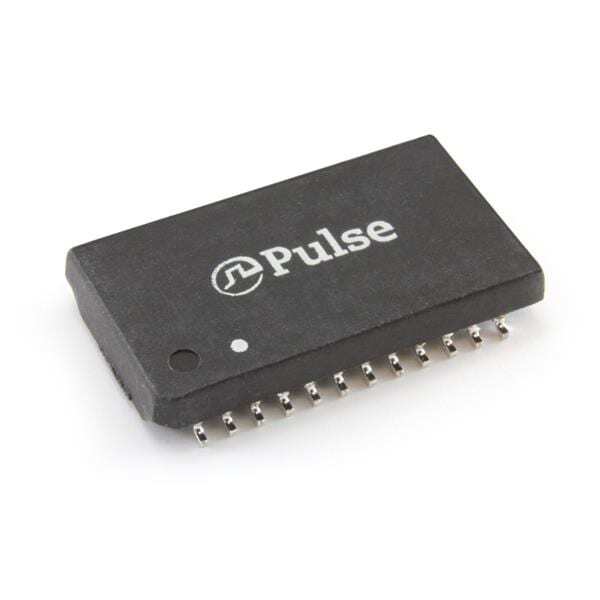

HM5149NL

Part No HM5149NL
Manufacturer Pulse
Catalog Transformers
Description Audio Transformers / Signal Transformers 1000BaseT SMD NonPoE 360uH .65Ohms 1-Por
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse
Product LAN Transformers
Type Module
Termination Style SMD/SMT
Frequency Range 100 kHz to 200 MHz
Inductance 360 uH
Isolation Voltage 1.5 kV
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Number of Channels Single
Length 17.78 mm
Width 9.91 mm
Height 3.2 mm
Packaging Tube
Maximum DC Resistance 650 mOhms
Primary Resistance 650 mOhms
Shielding Unshielded
Brand Pulse Electronics
Product Type Audio & Signal Transformers
Standard Pack Qty 25
Subcategory Transformers
Ultra Librarian 3D Model Ultra Librarian HM5149NL CAD Model
