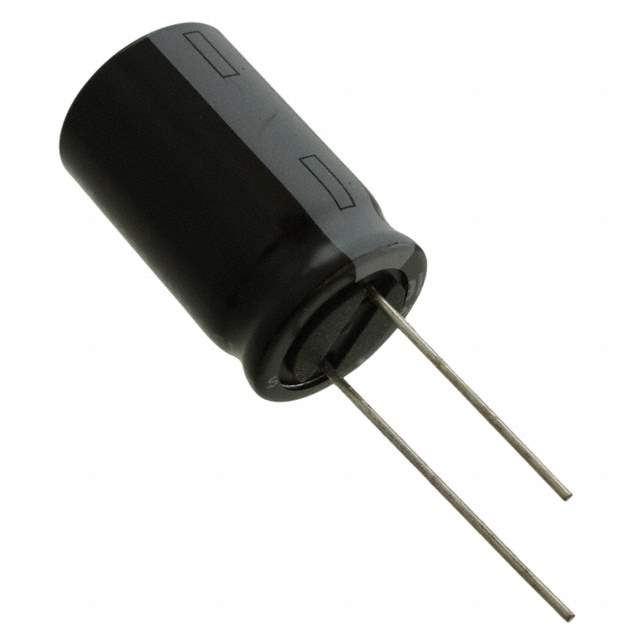

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 6800 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.91 A @ 120 Hz
Ripple Current @ High Frequency 2.1965 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.476" (37.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 200
Win Source Part Number 1018524-25PX6800MEFC16X35.5
Ultra Librarian 3D Model Ultra Librarian 25PX6800MEFC16X35.5 CAD Model

Description

The Rubycon 1018524-25PX6800MEFC16X35.5 capacitor is a high-quality component that is perfect for use in a wide range of electronic devices.

  • Capacitance: 6800μF
  • Voltage Rating: 25V
  • Mounting Type: Through-hole
  • ESR (Equivalent Series Resistance): -
  • Series: PX series
  • Ripple Current: 1.91A @ 120Hz
  • Ripple Current: 2.1965A @ 10kHz
