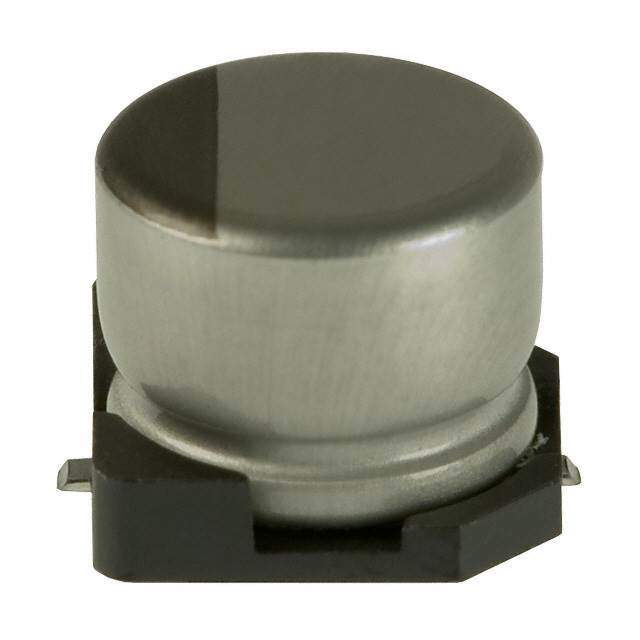

UWX1C101MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1C101MCL1GB

Part No UWX1C101MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / Cap Aluminum Lytic 100uF 16V 20% (6.3 X 5.4mm) SMD 86mA 2000h 85°C Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UWX
Packaging Reel package
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 86mA @ 120Hz
Ripple Current - High Frequency 129mA @ 10kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 798947-UWX1C101MCL1GB
Popularity Medium
Supply and Demand Status Limited
Family Name UWX
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian UWX1C101MCL1GB CAD Model

Description

This UWX series electronic component is designed by Nichicon.

  • Win Source Part Number: 798947-UWX1C101MCL1GB
  • Capacitance: 100μF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not Specified
  • Lifetime @ Temperature: 2000 Hrs @ 85°C
  • Polarization: Polar
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Family: UWX
  • Categories: Capacitors
  • ECCN: EAR99
  • REACH: Unaffected
  • Country of Origin: China, Japan, Malaysia
  • Estimated EOL Date: 2029
  • Supply and Demand Status: Limited
