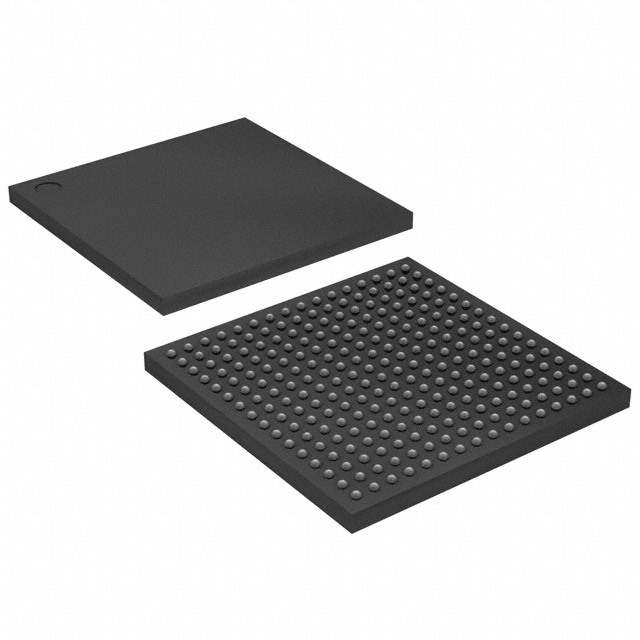

EPM570F256C4N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tray
Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.4ns
Voltage Supply - Internal 2.5V, 3.3V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 160
Temperature Range - Operating 0°C to 85°C (TJ)
Mounting SMD (SMT)
Case / Package 256-FBGA (17x17)
Win Source Part Number 066460-EPM570F256C4N
Popularity Medium
Supply and Demand Status Limited
Quantity per package 90
Ultra Librarian 3D Model Ultra Librarian EPM570F256C4N CAD Model

Description

The EPM570F256C4N CPLD is a sophisticated programmable device offering enhanced logic integration for complex electronic applications.

Features and Benefits:

  • Superior Logic Capacity: Equipped with 570 logic elements to support detailed and advanced circuit designs.
  • High-Speed Performance: Designed for applications requiring high data throughput.
  • Energy Efficient: Consumes minimal power, making it suitable for portable and low-power devices.
  • Comprehensive Support: Compatible with a wide range of development tools and software for ease of programming.

Applications/Projects:

  • Telecommunications Equipment
  • Robotics and Automation
  • Custom Logic Implementation
  • Prototyping New Circuit Designs

Its balanced design makes it a preferred choice for both novice and experienced designers in developing cutting-edge solutions.
