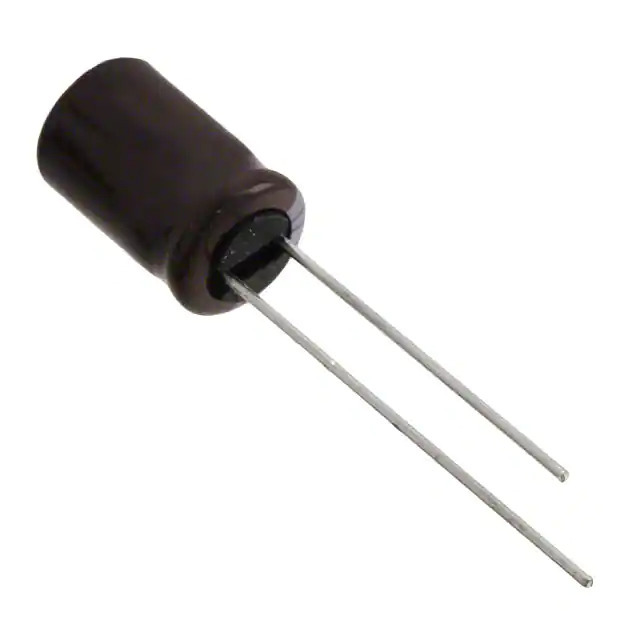

Same model may have multiple batches, images only for reference.
EKZE500ELL181MH20D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZE500ELL181MH20D

Part No EKZE500ELL181MH20D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 180UF 20% 50V RADIAL / 180 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZE
Package Bulk
Product Status Active
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 476 mA @ 120 Hz
Ripple Current @ High Frequency 1.19 A @ 100 kHz
Impedance 46 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360659-EKZE500ELL181MH20D
Ultra Librarian 3D Model Ultra Librarian EKZE500ELL181MH20D CAD Model

Description

The KZE series aluminum electrolytic capacitor is a versatile component suitable for general-purpose applications.

  • Capacitance: 180 μF
  • Voltage Rating: 50 V
  • Size: 0.315" diameter
  • Height: 0.787"
  • Mounting Type: Through-Hole
  • Series: KZE series
  • Manufacturer: United Chemi-Con
  • Lifetime: 3000 hours @ 105°C
  • Ripple Current (Low Frequency): 476 mA @ low frequency
  • Ripple Current (High Frequency): 1.19 A @ high frequency
  • Lead Spacing: 0.138"
  • Packaging: Bulk
  • Product Status: Active
  • REACH: Unaffected
