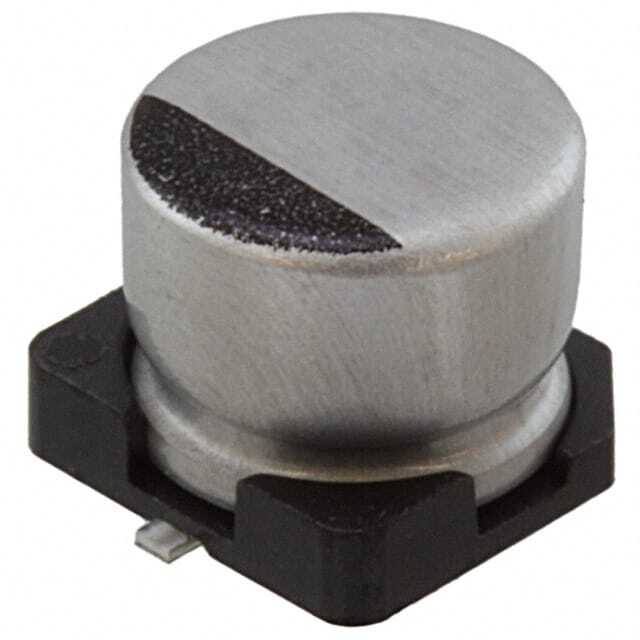

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 86 mA @ 120 Hz
Ripple Current @ High Frequency 103.2 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360159-16SEV100M6.3X5.5
Ultra Librarian 3D Model Ultra Librarian 16SEV100M6.3X5.5 CAD Model

Description

The Rubycon SEV series aluminum electrolytic capacitor is a reliable and high-performance component designed for automotive applications.

  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • Temperature Range: -40°C to 85°C
  • Package: Radial, Can - SMD
  • Lifetime: 2000 hours @ 85°C
  • Standard: AEC-Q200
  • Size: 0.248" diameter and 0.217" height
