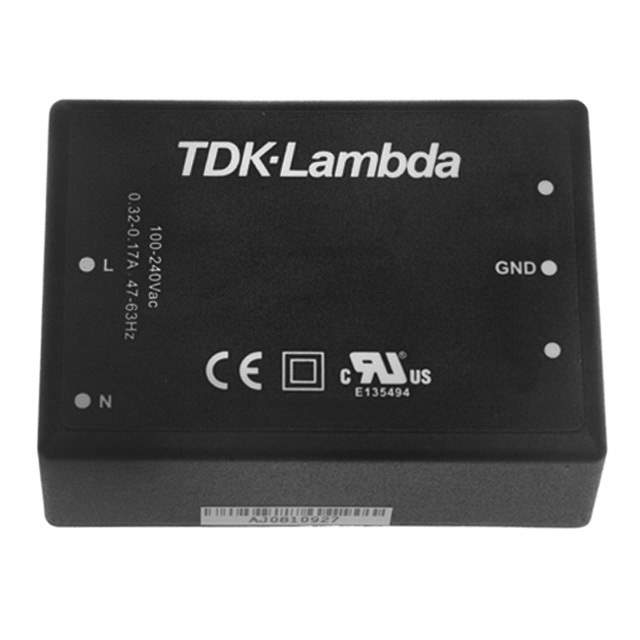

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series KM (40W)
Package Bulk
Product Status Not For New Designs
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 100 ~ 375 VDC
Voltage - Output 1 9V
Current - Output (Max) 4.44A
Power (Watts) 40 W
Applications Medical
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 7-DIP Module, 5 Leads
Dimension 3.50" L x 2.50" W x 1.06" H (89.0mm x 63.5mm x 27.0mm)
Approval Agency CE, EN, IEC, UL
Standard Number 60601-1; 60950-1; 62368-1
Line Regulation 0.5%
Load Regulation 1%
Weight 0.618 lb (280.32 g)
Base Product Number KMS40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Other Names KMS409
Standard Package 1
Win Source Part Number 1141904-KMS40-9
Ultra Librarian 3D Model Ultra Librarian KMS40-9 CAD Model

Description

The KM (40W) series of enclosed AC-DC converters from TDK-Lambda Americas Inc is an excellent choice for medical applications.

  • Input Voltage Range: 90-264 VAC or 100-375 VDC
  • Output Voltage: 9V
  • Maximum Output Current: 4.44A
  • Efficiency: 82%
  • Line Regulation: 0.5%
  • Load Regulation: 1%
  • Mounting Type: through-hole
  • Package: 7-DIP module, 5 leads
  • Operating Temperature Range: -25°C to 70°C (with derating)
  • Dimension: 3.50" L x 2.50" W x 1.06" H (89.0mm x 63.5mm x 27.0mm)
  • Approvals: CE, EN, IEC, UL
  • Complies with standard number: 60601-1, 60950-1, and 62368-1
  • Status: not for new designs
  • Alternative Part Number: KMS409
