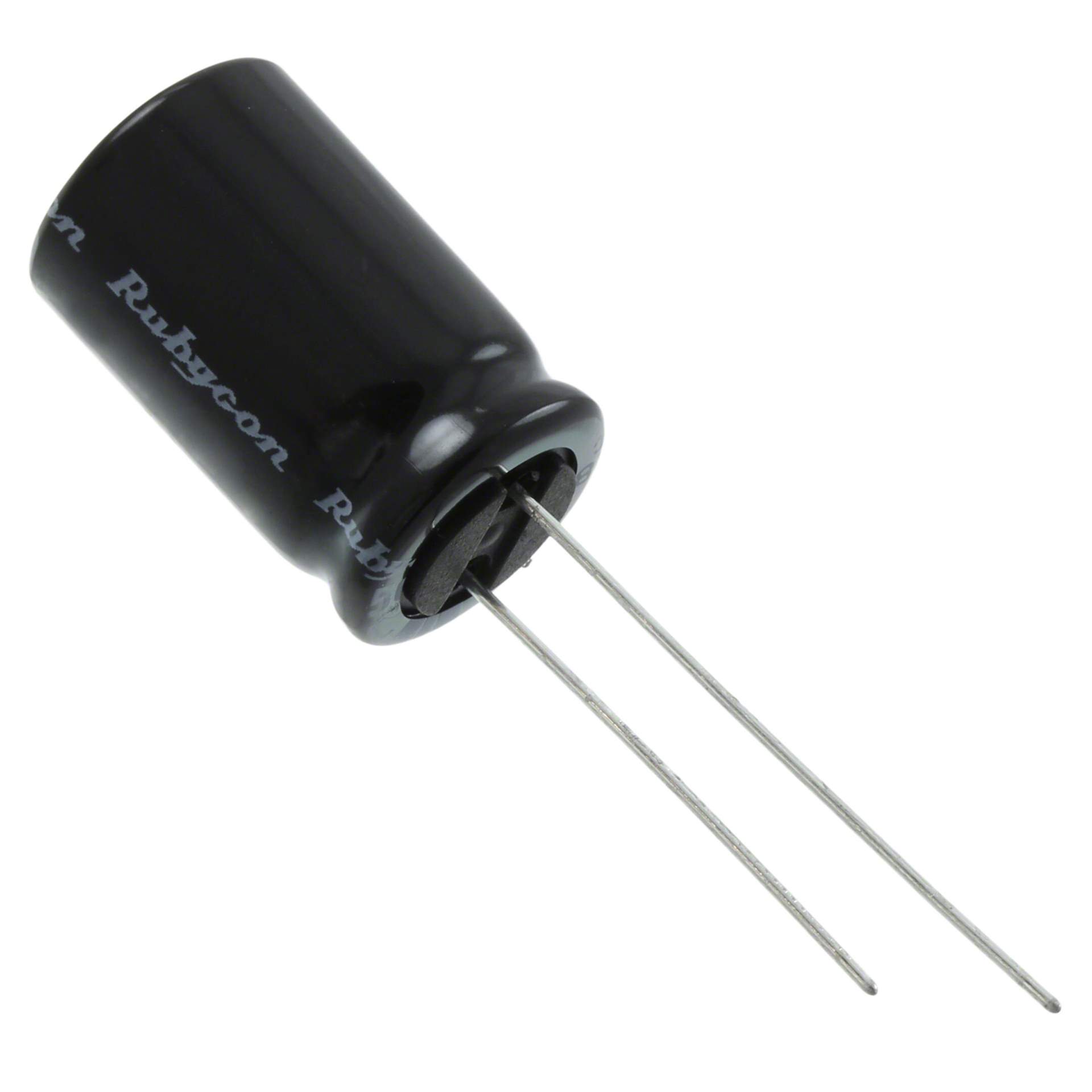

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YK
Package Tape & Box (TB)
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 168 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1342755-10YK100MTA5X11
Ultra Librarian 3D Model Ultra Librarian 10YK100MTA5X11 CAD Model

Description

The Rubycon YK series capacitors are aluminum electrolytic capacitors that are perfect for general purpose applications.

  • Series: YK
  • Capacitance: 100 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Size/Dimension: 0.197" Dia (5.00mm)
  • Height-Seated (Max): 0.492" (12.50mm)
  • Ripple Current: 140 mA @ 120 Hz and 168 mA @ 10 kHz
  • Lifetime: 2000 Hrs @ 85°C
  • Operating Temperature: -40°C to 85°C
  • Status: Obsolete
