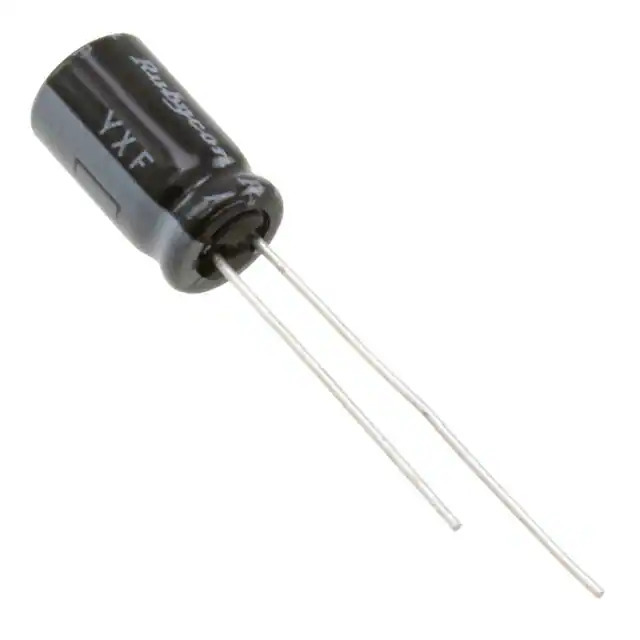

100YXF10MEFCTA6.3X11 Rubycon
Same model may have multiple batches, images only for reference.

100YXF10MEFCTA6.3X11

Part No 100YXF10MEFCTA6.3X11
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 100V RADIAL / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 58.8 mA @ 120 Hz
Ripple Current @ High Frequency 140 mA @ 100 kHz
Impedance 1.2 Ohms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358161-100YXF10MEFCTA6.3X11
Ultra Librarian 3D Model Ultra Librarian 100YXF10MEFCTA6.3X11 CAD Model

Description

The Rubycon YXF series capacitors are aluminum electrolytic capacitors with a capacitance of 10 µF and a voltage rating of 100 V.

  • Capacitance: 10 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 58.8 mA @ 120 Hz
  • Ripple Current (High Frequency): 140 mA @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.248" Dia (6.30mm)
  • Mounting Type: Through-Hole
  • Height: 0.492" (12.50mm)
  • Lifetime: 5000 hours @ 105°C
  • Polarized: Yes
  • Impedance: 1.2 Ohms
  • Manufacturer: Rubycon
  • Package: Radial Can
  • Product Status: Active
  • REACH: Unaffected
