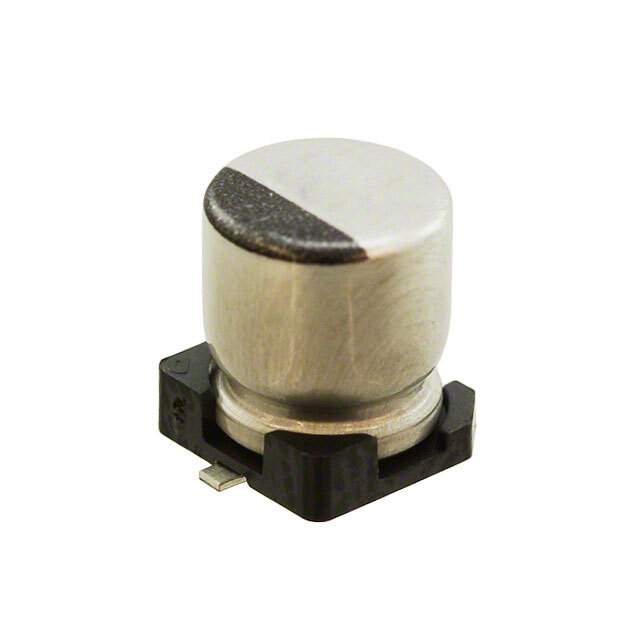

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 28.8 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Impedance 1.45 Ohms
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1621-1,1189-1621-2,35TZV10M4X61,1189-1621-6
Standard Package 2,000
Win Source Part Number 1120324-35TZV10M4X6.1
Ultra Librarian 3D Model Ultra Librarian 35TZV10M4X6.1 CAD Model

Description

The 1120324-35TZV10M4X6.1 is an aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 35 V from Rubycon.

  • Capacitance: 10 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 1.45 Ohms
  • Polarization: Polarized
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height: 0.240" (6.10mm)
  • Package: Radial, Can - SMD
  • Application: Automotive
  • Lifetime: 2000 hours @ 105°C
