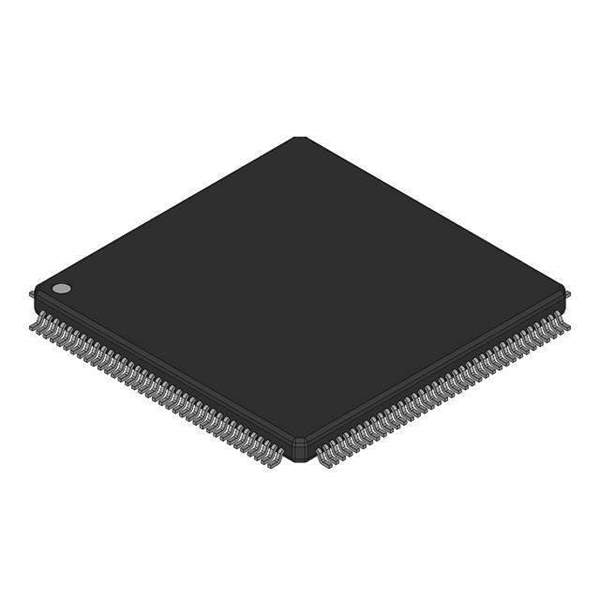

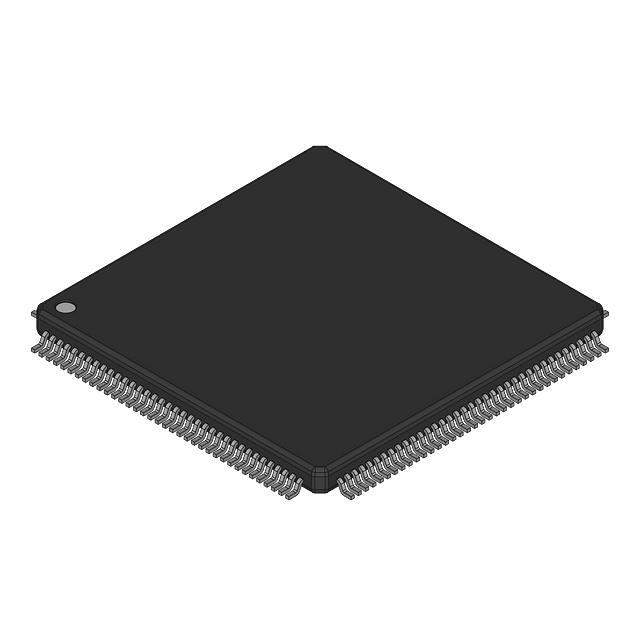

EPM1270GT144C3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>CPLDs (Complex Programmable Logic Devices)
Manufacturer Intel
Packaging Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 6.2 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 1270
Number of Macrocells 980
Number of I/O 116
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting Surface Mount
Case / Package 144-LQFP
Supplier Device Package 144-TQFP (20x20)
Base Product Number EPM1270
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 972842,-544-1330,544-1330
Standard Package 60
Win Source Part Number 1321790-EPM1270GT144C3
Ultra Librarian 3D Model Ultra Librarian EPM1270GT144C3 CAD Model

Description

The Intel EPM1270GT144C3 is a Complex Programmable Logic Device (CPLD).

  • Programmable: In-system programmable
  • Delay Time tpd(1) Max: 6.2 ns
  • Voltage Supply - Internal: 1.71V ~ 1.89V
  • I/Os: 116
  • Logic Elements/Blocks: 1270
  • Macrocells: 980
  • Supplier Device Package: 144-TQFP (20x20)
  • Operating Temperature: 0°C to 85°C (TJ)
  • RoHS Compliance: Non-compliant with RoHS
