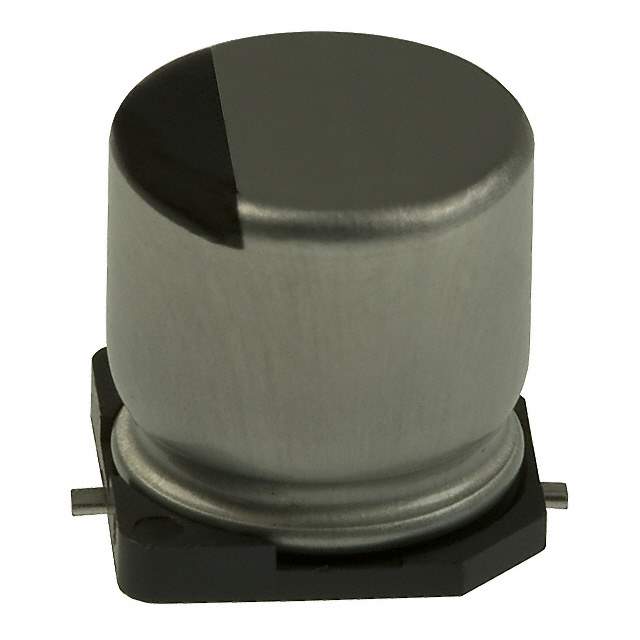

EEEHA1E331UP Real Image
Same model may have multiple batches, images only for reference.

EEEHA1E331UP

Part No EEEHA1E331UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description Aluminum Electrolytic Capacitor, 330 uF, 25 V, ± 20%, 1000 hours @ 105°C, Radial Can - SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 330 µF
Case / Package Radial
Contact Plating Tin
Diameter 8 mm
Features General Purpose
Height 10.2 mm
Height - Seated (Max) 10.2108 mm
Lead Diameter 900 µm
Lead Free Lead Free
Lead Pitch 3.1 mm
Leakage Current 82.5 µA
Length 10.5 mm
Life (Hours) 2000 hours
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount PCB, Surface Mount
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 180 mA
Ripple Current (AC) 180 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 25 V
Voltage Rating 25 V
Voltage Rating (DC) 25 V
Width 900 µm
Win Source Part Number 1115105-EEEHA1E331UP
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEEHA1E331UP CAD Model

Description

The Panasonic aluminum capacitor is a general-purpose capacitor used in various electronic devices.

  • Capacitance: 330 µF
  • Voltage Rating: 25 V
  • Tolerance: 20%
  • Leakage Current: 82.5 µA
  • Ripple Current: 180 mA
  • Case/Package: Radial
  • Height: 10.2 mm
  • Diameter: 8 mm
  • RoHS Compliant: Yes
  • Mounting Technology: Surface Mount
  • Life: 2000 hours
  • Temperature Range: -40°C to 105°C
