Same model may have multiple batches, images only for reference.

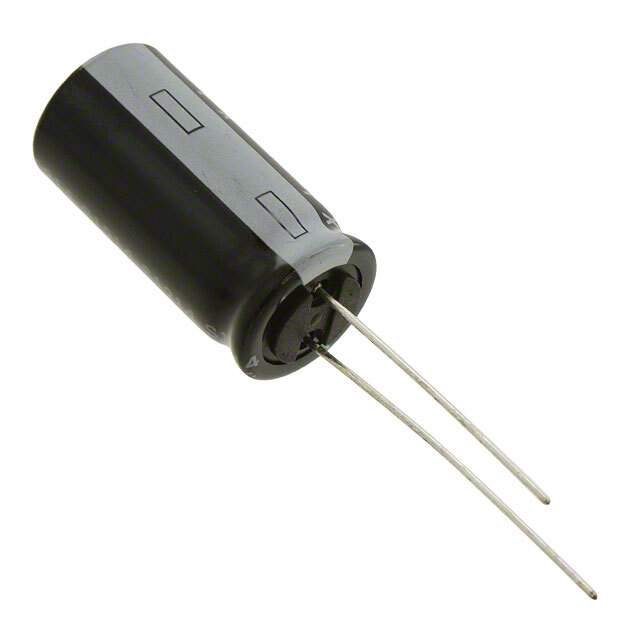

100PX330MEFC12.5X25 Real Image
Same model may have multiple batches, images only for reference.

100PX330MEFC12.5X25

Part No 100PX330MEFC12.5X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 100V RADIAL / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 690 mA @ 120 Hz
Ripple Current @ High Frequency 828 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 100PX330MEFC125X25,1189-1003
Standard Package 1,000
Win Source Part Number 1133550-100PX330MEFC12.5X25
Ultra Librarian 3D Model Ultra Librarian 100PX330MEFC12.5X25 CAD Model

Description

This Rubycon aluminum electrolytic capacitor is part of the PX series and has a capacitance of 330µF with a tolerance of ±20%.

  • Manufacturer: Rubycon
  • Series: PX
  • Capacitance: 330µF
  • Tolerance: ±20%
  • Voltage Rating: 100V
  • Lead Spacing: 5.00mm
  • Polarization: Polarized
  • Package/Case: Radial, Can
  • Ripple Current (Low Frequency): 690mA @ 120Hz
  • Ripple Current (High Frequency): 828mA @ 10kHz
  • Application: General Purpose
  • Height (Seated): 26.50mm
  • Standard Package: 1,000
  • Lifetime: 2000 hours @ 105°C
