Same model may have multiple batches, images only for reference.

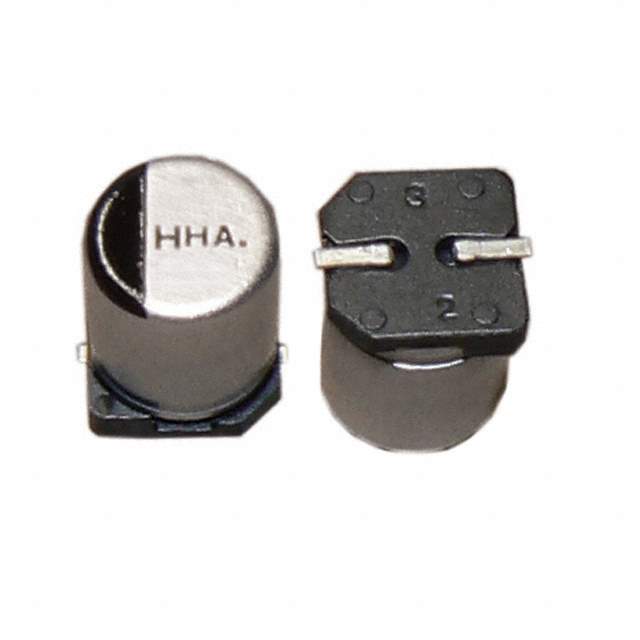

AHA477M16G24T-F Real Image
Same model may have multiple batches, images only for reference.

AHA477M16G24T-F

Part No AHA477M16G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V SMD / Cap Aluminum Lytic 470uF 16V 20% (10 X 10.2mm) SMD 0.7 Ohm 340mA 2000h 105°C Automotive T/R
Datasheet
AHA477M16G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 470μF
Tolerance ±20%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 700 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 340mA @ 120Hz
Ripple Current - High Frequency 578mA @ 10kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777755-AHA477M16G24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA477M16G24T-F CAD Model

Description

The Cornell Dubilier Electronics AHA477M16G24T-F is a high-quality aluminum electrolytic capacitor that is widely used in electronic circuits.

  • Capacitance: 470μF
  • Voltage Rating: 16V
  • Operating Temperature Range: -55°C to 105°C
  • Application: High-frequency filtering and decoupling
