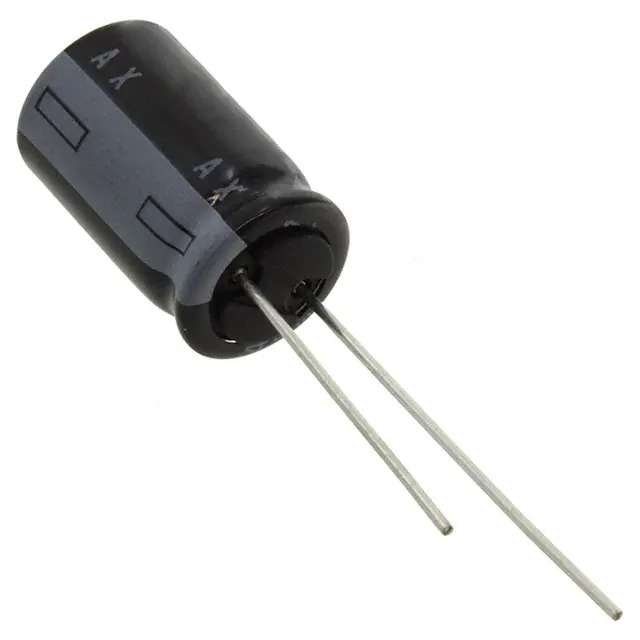

400AX22MEFC12.5X16 Rubycon
Same model may have multiple batches, images only for reference.

400AX22MEFC12.5X16

Part No 400AX22MEFC12.5X16
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 400V RADIAL / 22 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series AX
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 270 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.709" (18.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357836-400AX22MEFC12.5X16
Ultra Librarian 3D Model Ultra Librarian 400AX22MEFC12.5X16 CAD Model

Description

The Rubycon 1357836-400AX22MEFC12.5X16 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 180 mA @ 120 Hz
  • Ripple Current (High Frequency): 270 mA @ 100 kHz
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Size: 0.492" Diameter
  • Height: 0.709"
  • Lifetime: 2000 Hours @ 105°C
  • Packaging: Bulk
  • Product Status: Active
  • Series: AX
  • Manufacturer: Rubycon
