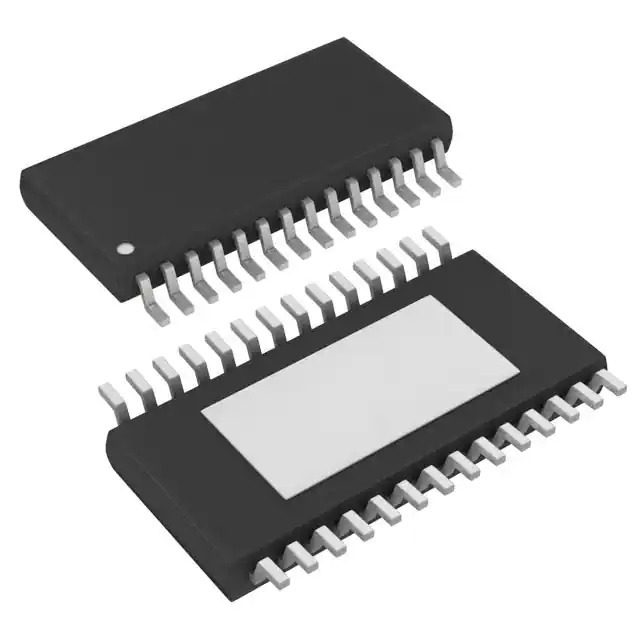

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Series -
Package Tape & Reel
Product Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Logic
Technology DMOS
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications Camera, Printer
Current - Output 3A
Voltage - Supply 8V ~ 28V
Voltage - Load -
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Surface Mount
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD63731
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372114-BD63731EFV-E2
Ultra Librarian 3D Model Ultra Librarian BD63731EFV-E2 CAD Model

Description

The BD63731EFV-E2 is a motor driver integrated circuit from Rohm Semiconductor.

  • Temperature Range: -20°C to 85°C
  • Applications: Cameras and Printers
  • Type: Fully Integrated Driver
  • Voltage Supply Range: 8V to 28V
  • Output Current: Up to 3A
  • Output Configuration: Half Bridge
  • Outputs: 4
  • Motor Type: Bipolar Stepper Motors and Brushless DC Motors
  • Package: 28-VSSOP
  • Interface: Logic
