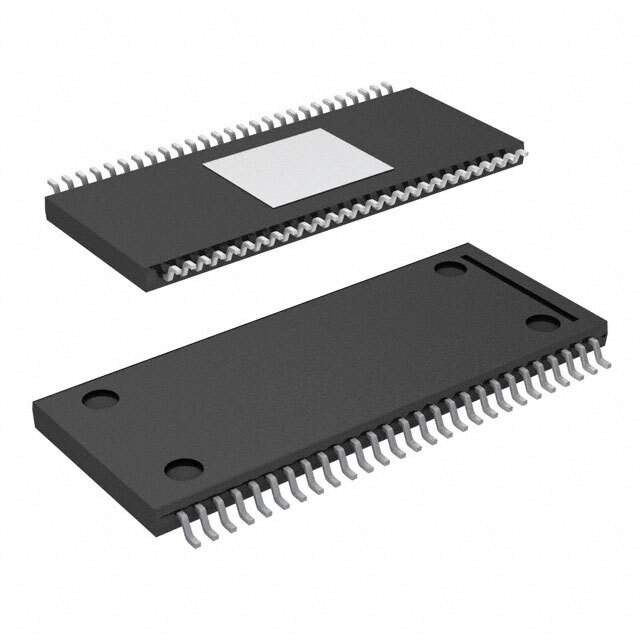

BD63730EFV-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General Purpose
Current - Output 2.7A
Voltage - Supply 19V ~ 28V
Voltage - Load 19V ~ 28V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 54-VSSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package 54-HTSSOP-B
Base Product Number BD63730
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BD63730EFV-E2CT,BD63730EFV-E2TR,BD63730EFV-E2DKR
Standard Package 1,500
Win Source Part Number 1049024-BD63730EFV-E2
Ultra Librarian 3D Model Ultra Librarian BD63730EFV-E2 CAD Model

Description

The Rohm Semiconductor BD63730EFV-E2 is a half bridge driver that is fully integrated with control and power stage.

  • Type: Integrated Circuit (IC)
  • Designed for: Motor Drivers and Controllers
  • Package: 54-VSSOP (0.295", 7.50mm Width) Exposed Pad
  • Voltage Supply: 19V ~ 28V
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
