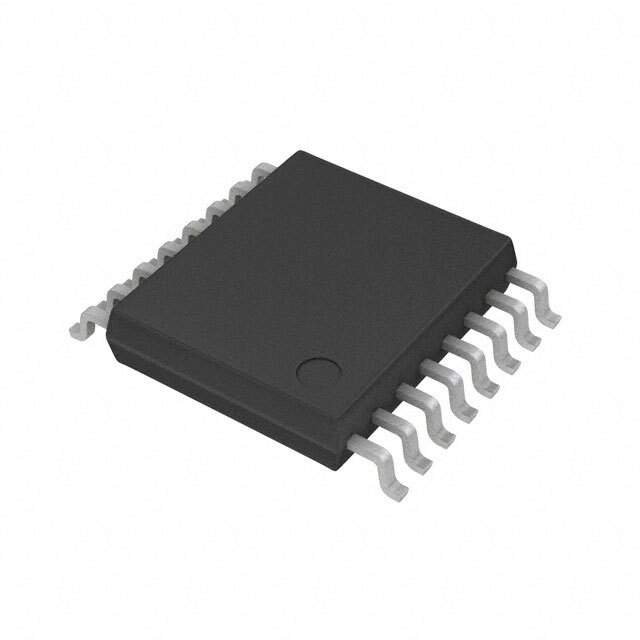

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - Stepper Multiphase
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (3)
Interface PWM
Technology DMOS
Applications General Purpose
Current - Output 1A
Voltage - Supply 5V ~ 16V
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 16-LSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-SSOP-B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 846-BD63241FV-E2CT,846-BD63241FV-E2TR,846-BD63241FV-E2DKR
Standard Package 2,500
Win Source Part Number 971589-BD63241FV-E2
Ultra Librarian 3D Model Ultra Librarian BD63241FV-E2 CAD Model

Description

The 971589-BD63241FV-E2 is a fully integrated driver and control stage for multiphase stepper motors and brushless DC motors.

  • Current Output: 1A
  • Voltage Supply: 5V to 16V
  • Technology: DMOS
  • Output Configuration: half bridge
  • Outputs: three
  • Interface: PWM
  • Package: 16-LSSOP
  • Width: 4.40mm
  • Packaging: tape and reel
  • Standard Package: 2,500
  • Temperature Range: -40°C to 100°C
  • Classification: EAR99
  • Application: general purpose
