BD62110AEFJ-E2 Rohm Semiconductor

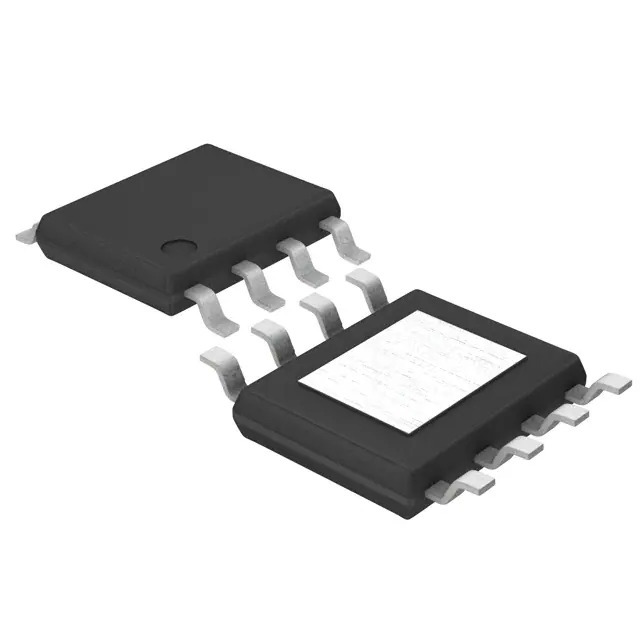

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Series -
Package Tape & Reel
Product Status Active
Motor Type - Stepper -
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface PWM
Technology DMOS
Step Resolution -
Applications Printer
Current - Output 700mA
Voltage - Supply 8V ~ 28V
Voltage - Load 8V ~ 28V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package 8-HTSOP-J
Base Product Number BD62110
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372108-BD62110AEFJ-E2
Ultra Librarian 3D Model Ultra Librarian BD62110AEFJ-E2 CAD Model

Description

The BD62110AEFJ-E2 is a motor driver integrated circuit from Rohm Semiconductor.

  • Product Category: Power Management ICs
  • Application: Motor Control
  • Operating Temperature: -25°C to 85°C
  • Packaging: Tape & Reel
  • Type: Fully Integrated
  • Voltage - Supply: 8V to 28V
  • Output Configuration: Half Bridge
  • Interface: PWM
  • Current - Output: 700mA
  • Status: Active
