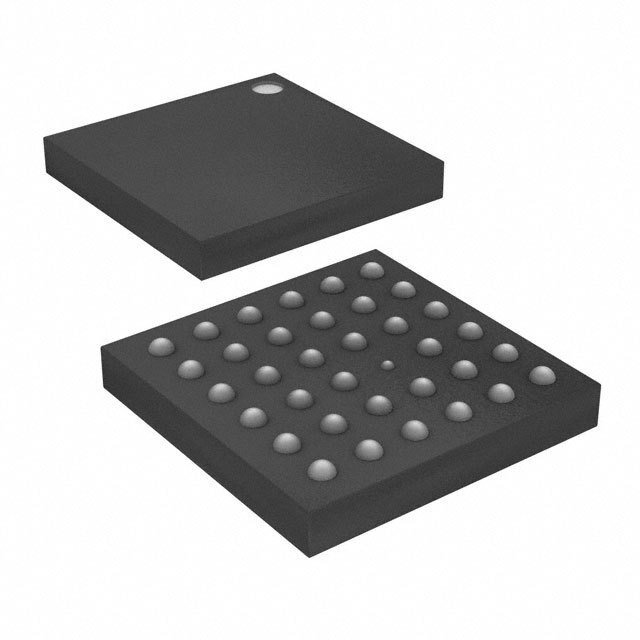

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel package
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 7 + 4LDOs
Voltage Supply MIN 2.7V
Voltage Supply MAX 5.5V
Voltage - Output 5.1V
Output Current per Channel 30mA
Frequency 900kHz
Applications Backlight
Operating Temperature Range -35°C ~ 85°C (TA)
Mounting SMD
Package 35-VFBGA
Manufacturer Package 36VCSP50L3
Win Source Part Number 769905-BD6085GUL-E2
Popularity Medium
Supply and Demand Status Limited
Family Name BD6085GUL
Introduction Date September 24, 2008
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BD6085GUL-E2 CAD Model

Description

The BD6085GUL-E2 is a DC-DC regulator that has a voltage output of 5.1V and a frequency of 900kHz.

  • Family: BD6085GUL
  • Package: 35-VFBGA
  • Maximum Output Current: 30mA
  • Application: Backlight
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Alternative Parts: CY8CLED04-68LFXI, PCA9533DP/01,118
