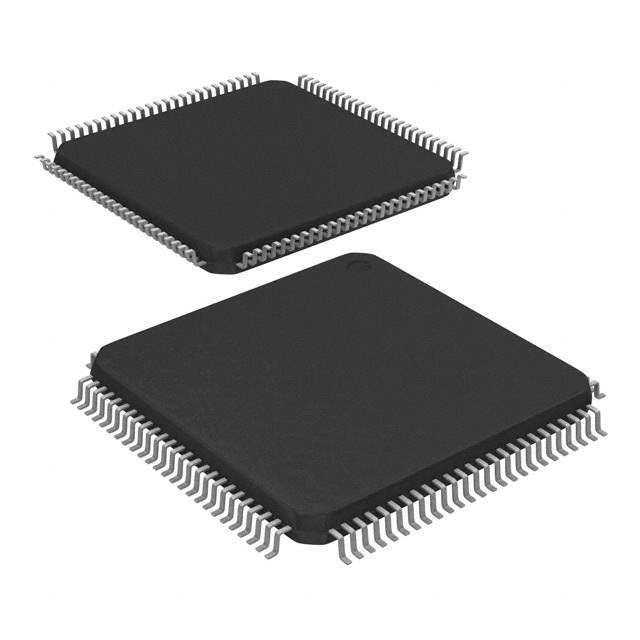

MB9BF566NPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

MB9BF566NPMC-G-JNE2

Part No MB9BF566NPMC-G-JNE2
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 544KB FLASH 100LQFP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M4F series Microcontroller IC 32-Bit 160MHz 544KB (544K x 8) FLASH 100-LQFP (14x14)
Manufacturer Cypress Semiconductor Corp
Series FM4 MB9B560R
Package Bulk
Part Status Obsolete
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit
Speed 160MHz
Connectivity CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 80
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
Supply Voltage 2.7V ~ 5.5V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 100-LQFP
Case / Package 100-LQFP (14x14)
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883100-MB9BF566NPMC-G-JNE2
Ultra Librarian 3D Model Ultra Librarian MB9BF566NPMC-G-JNE2 CAD Model

Description

The Cypress Semiconductor Corp FM4 MB9B560R is a high-performance ARM Cortex-M4F series Microcontroller IC with a speed of 160MHz.

  • Speed: 160MHz
  • Program memory: 544KB (544K x 8) FLASH
  • I/O: 80
  • Connectivity: CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, UART/USART, and USB
  • Peripherals: DMA, LVD, POR, PWM, and WDT
  • Oscillator Type: internal
  • Supply Voltage: 2.7V ~ 5.5V
  • Package: 100-LQFP
  • Mounting: surface mountable
  • Status: obsolete
  • Supply: limited
