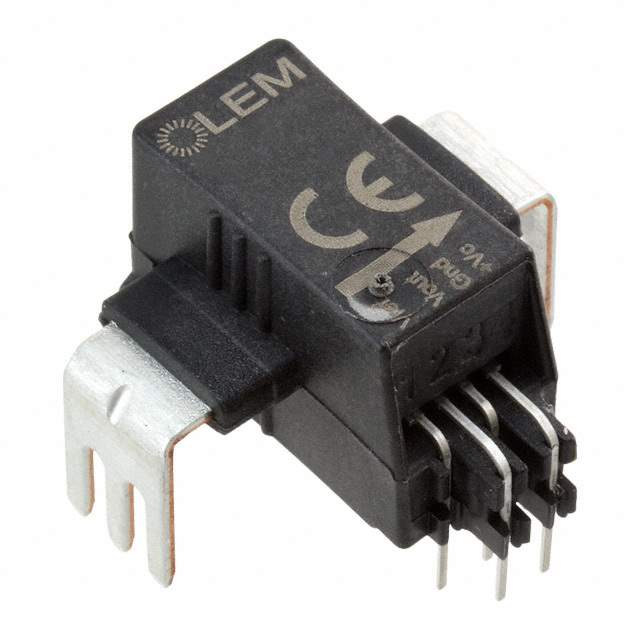

HLSR 40-P Real Image HLSR 40-P Real Image
Same model may have multiple batches, images only for reference.
HLSR 40-P Real Image HLSR 40-P Real Image
HLSR 40-P Real Image HLSR 40-P Real Image
Same model may have multiple batches, images only for reference.

HLSR 40-P

Part No HLSR 40-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 40A AC/DC  /  Current Sensor 40A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series HLSR-P
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 40A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 20mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply 5V
Response Time 2.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names 398-1124,90.J3.23.000.0,HLSR40P
Standard Package 50
Win Source Part Number 988047-HLSR 40-P
Ultra Librarian 3D Model Ultra Librarian HLSR 40-P CAD Model

Description

This electronic component is a current sensor with the Win Source Part Number 988047-HLSR 40-P from -.

  • Series: HLSR-P
  • Category: Sensors, Transducers > Current Sensors
  • Type: bidirectional
  • Sensitivity: 20mV/A
  • Current Measurement: AC/DC current up to 40A
  • Output: ratiometric and voltage
  • Response Time: 2.5µs
  • Frequency: 400kHz
  • Maximum Current Supply: 25mA
  • Linearity: ±0.5%
