Same model may have multiple batches, images only for reference.

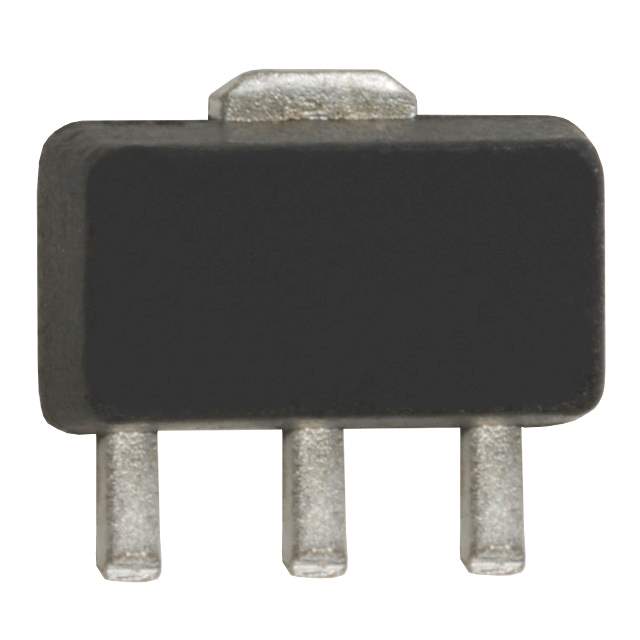

SGA-5289Z Real Image
Same model may have multiple batches, images only for reference.

SGA-5289Z

Part No SGA-5289Z
Manufacturer RF Micro Devices
Catalog RF Amplifiers
Description IC AMP HBT SIGE 5000MHZ SOT-89
Datasheet
SGA-5289Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RF Micro Devices
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 5GHz
P1dB 14.4dBm (27.5mW)
Gain 12.7dB
Noise Figure 3.8dB
RF Type Cellular, GSM, PCS, UMTS
Supply Voltage - Operating 3.1 V to 3.9 V
Operating Supply Current 54mA to 66mA
Test Frequency 1.95GHz
Case / Package SOT-89-3
Win Source Part Number 028303-SGA-5289Z
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SGA-5289Z CAD Model

Description

The SGA-5289Z from RF Micro Devices is an electronic component used in a variety of applications.

  • Manufacturer: RF Micro Devices
  • Win Source Part Number: 028303
  • Frequency Range: 0Hz to 5GHz
  • Gain: 12.7dB
  • Noise Figure: 3.8dB
  • Applications: cellular, GSM, PCS, and UMTS devices
