Products specifications Report Issue?

Categories Uncategorized
Manufacturer RF Micro Devices
Popularity Low
Supply and Demand Status Balance
Win Source Part Number 835383-RFFC2072
Ultra Librarian 3D Model Ultra Librarian RFFC2072 CAD Model

Description

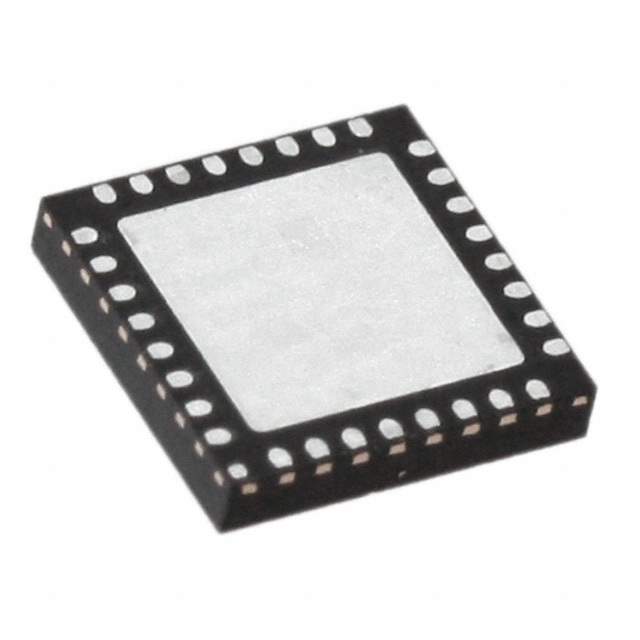

The RFFC2072 is a highly integrated, single-chip RF front-end IC designed by RF Micro Devices (now Qorvo). It is engineered for wireless communication systems operating in various frequency bands. It provides a complete RF front-end solution, simplifying the design and reducing the component count in wireless devices.

Applications

  • Wireless local loop (WLL) systems
  • Fixed wireless access (FWA)
  • ISM band transceivers
  • Cordless phones
  • Wireless data applications
  • Security systems

Features

  • Integrated Transceiver: Includes both transmitter and receiver functions on a single chip.
  • Fractional-N Synthesizer: Allows for flexible frequency generation with fine resolution.
  • Low Phase Noise: Ensures high signal quality and minimizes interference.
  • Programmable Channel Bandwidth: Adapts to different communication standards and channel requirements.
  • Low Power Consumption: Extends battery life in portable applications.
  • Compact Package: Enables small form-factor designs.

Benefits

  • Reduced Bill of Materials (BOM): Integration of multiple functions reduces the number of external components required.
  • Faster Time to Market: Simplified design and reduced component count accelerate product development cycles.
  • Improved System Performance: Low phase noise and high linearity contribute to better signal quality and range.
  • Extended Battery Life: Low power consumption is crucial for portable and battery-powered devices.
  • Smaller Product Size: Enables the development of smaller and more compact wireless devices.
  • Increased Design Flexibility: Programmable features allow for customization and adaptation to different applications.

Technical Specifications

Key technical specifications include operating frequency range, output power, receiver sensitivity, phase noise characteristics, supply voltage requirements, and power consumption figures. Consult the Qorvo datasheet for the RFFC2072 for detailed and precise specifications.

In summary, the RFFC2072 is a versatile and high-performance RF front-end IC suitable for a wide range of wireless communication applications. Its integration, low power consumption, and programmable features make it an excellent choice for simplifying design and improving system performance.
