NBB-310 RF Micro Devices NBB-310 real image NBB-310 label picture
Same model may have multiple batches, images only for reference.
NBB-310 RF Micro Devices NBB-310 real image NBB-310 label picture
NBB-310 RF Micro Devices NBB-310 real image NBB-310 label picture
Same model may have multiple batches, images only for reference.

NBB-310

Part No NBB-310
Manufacturer RF Micro Devices
Catalog RF Amplifiers
Description IC AMP MMIC GAAS 12GHZ 4-MICROX
Datasheet
NBB-310 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RF Micro Devices
Packaging Reel - TR
Status Active
Frequency 0Hz to 12GHz
P1dB 14.5dBm (28.2mW) @ 8GHz
Gain 11dB to 11.5dB @ 4GHz to 8GHz
Noise Figure 4.9dB @ 3GHz
RF Type LMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
Supply Voltage - Operating 4.4 V to 4.9 V
Operating Supply Current 50mA

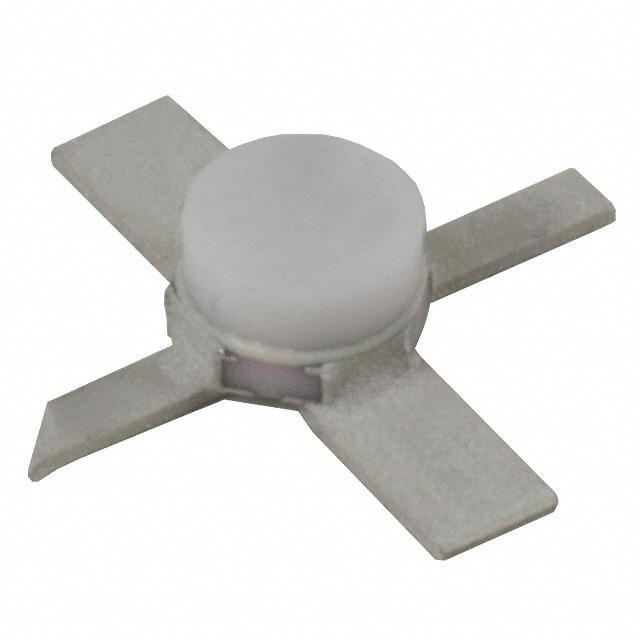

Case / Package 4-Micro-X
Win Source Part Number 086573-NBB-310
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBB-310 CAD Model

Description

The RF Micro Devices 086573-NBB-310 is an active electronic component with a high popularity in the market.

  • Manufacturer: RF Micro Devices
  • Win Source Part Number: 086573-NBB-310
  • Product Type: RF Amplifier
  • Frequency Range: 0Hz to 12GHz
  • Gain: 11dB to 11.5dB @ 4GHz to 8GHz
  • Noise Figure: 4.9dB @ 3GHz
  • P1dB: 14.5dBm (28.2mW) @ 8GHz
  • RF Type: LMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
  • Alternative Parts: MMG3006NT1, ISL55007IEZ, and NBB-310-D
