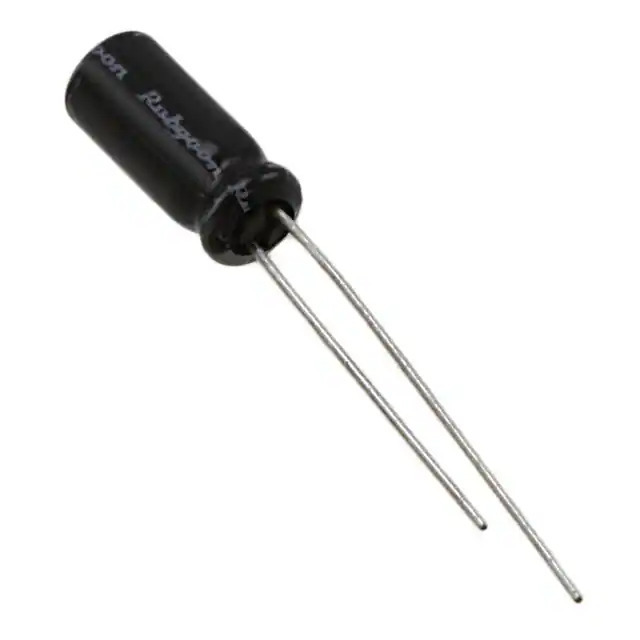

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 172.5 mA @ 120 Hz
Ripple Current @ High Frequency 345 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357744-16ZLH100MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 16ZLH100MEFC5X11 CAD Model

Description

The 1357744-16ZLH100MEFC5X11 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: ZLH
  • Application: General Purpose
  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 2.00mm
  • Size/Dimension: 5.00mm Diameter
  • Lifetime: 6000 hours @ 105°C
  • Ripple Current: 172.5 mA @ 120 Hz
  • REACH: Unaffected
