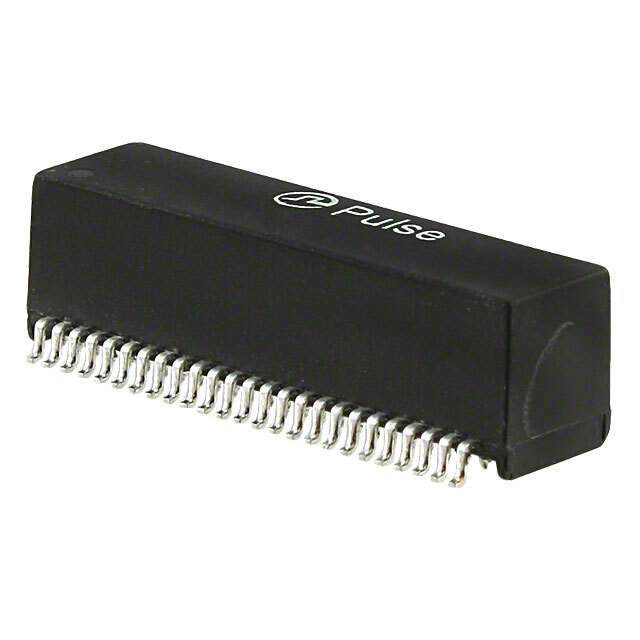

The HX5020NL is a high-performance pulse transformer manufactured by Pulse Electronics. This transformer is designed for use in various isolated power and signal applications, offering excellent electrical characteristics and reliability. It is commonly used in Ethernet and other communication interfaces to provide galvanic isolation and signal coupling.

Applications

• Ethernet interfaces (10/100/1000 Base-T)
• Power over Ethernet (PoE) applications
• Isolated power supplies
• Data communication equipment
• Industrial control systems
• Telecommunication equipment

Features

• High Isolation Voltage: Provides excellent galvanic isolation between primary and secondary sides.
• Low Leakage Inductance: Minimizes signal distortion and improves performance.
• Optimized for Ethernet: Designed to meet the requirements of Ethernet standards.
• Surface Mount Package: Facilitates easy assembly on printed circuit boards.
• Wide Operating Temperature Range: Suitable for use in various environmental conditions.
• RoHS Compliant: Meets environmental standards.

Benefits

• Improved System Reliability: Galvanic isolation protects sensitive circuitry from voltage spikes and ground loops.
• Enhanced Signal Integrity: Low leakage inductance ensures accurate signal transmission.
• Simplified Design: Integrated solution reduces component count and simplifies board layout.
• Increased Safety: High isolation voltage enhances safety in power applications.
• Compliance with Standards: Meets industry standards for Ethernet and other communication protocols.

Additional Details

The HX5020NL is typically used in conjunction with Ethernet PHY transceivers to provide the necessary isolation and signal coupling for network communication. The transformer is designed to meet the requirements of various Ethernet standards, including 10Base-T, 100Base-TX, and 1000Base-T. It features a compact surface mount package for easy assembly. The operating temperature range typically spans from -40°C to +85°C. Pulse Electronics is a leading provider of electronic components, including transformers, inductors, and connectors. The HX5020NL offers a reliable and cost-effective solution for isolated power and signal applications.
