Same model may have multiple batches, images only for reference.

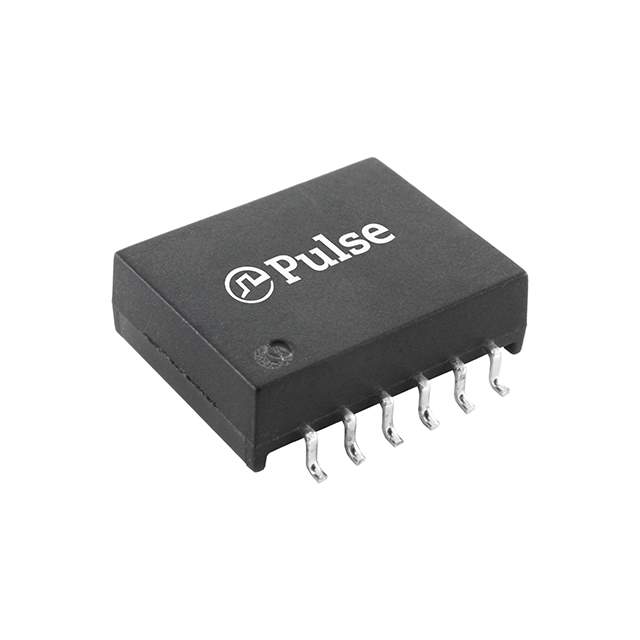

HM2102NLT Real Image
Same model may have multiple batches, images only for reference.

HM2102NLT

Part No HM2102NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR CMC MODULE AECQ BATT MNGT  /  150µH Pulse Transformer 1:1 Surface Mount
Datasheet
HM2102NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Inductance 150µH
Mounting SMD (SMT)
Dimension 0.583" L x 0.460" W (14.81mm x 11.68mm)
Height - Seated (Max) 0.197" (5.00mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 1840-1034-1,1840-1034-2,1840-1034-6
Standard Package 300
Win Source Part Number 971792-HM2102NLT
Ultra Librarian 3D Model Ultra Librarian HM2102NLT CAD Model

Description

The HM2102NLT is a pulse transformer that belongs to the transformers category from Pulse Electronics Network.

  • Package: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Height: 0.197" (5.00mm)
  • Width: 0.583" L x 0.460" W (14.81mm x 11.68mm)
  • Inductance: 150µH
  • Cross-Reference: 1840-1034-1, 1840-1034-2, and 1840-1034-6
