Same model may have multiple batches, images only for reference.

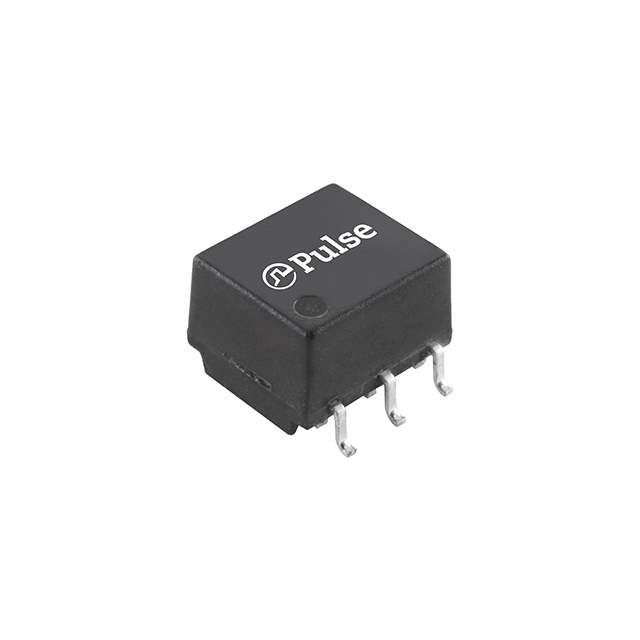

HM2103NLT Real Image
Same model may have multiple batches, images only for reference.

HM2103NLT

Part No HM2103NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR CMC MODULE AECQ BATT MNGT / 150µH, 450µH Pulse Transformer 1:1 Surface Mount
Datasheet
HM2103NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Inductance 150µH, 450µH
Mounting SMD (SMT)
Dimension 0.300" L x 0.265" W (7.62mm x 6.73mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 1840-1035-1,1840-1035-2,1840-1035-6
Standard Package 700
Win Source Part Number 969063-HM2103NLT
Ultra Librarian 3D Model Ultra Librarian HM2103NLT CAD Model

Description

The Pulse Electronics Network HM2103NLT is a pulse transformer that is designed for transformers - pulse transformers applications.

  • Package: Tape and Reel
  • Standard Package: 700
  • Inductance: 150µH and 450µH
  • Seated Height: 0.225" (5.72mm)
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.300" L x 0.265" W (7.62mm x 6.73mm)
  • Mfr: Pulse Electronics Network
