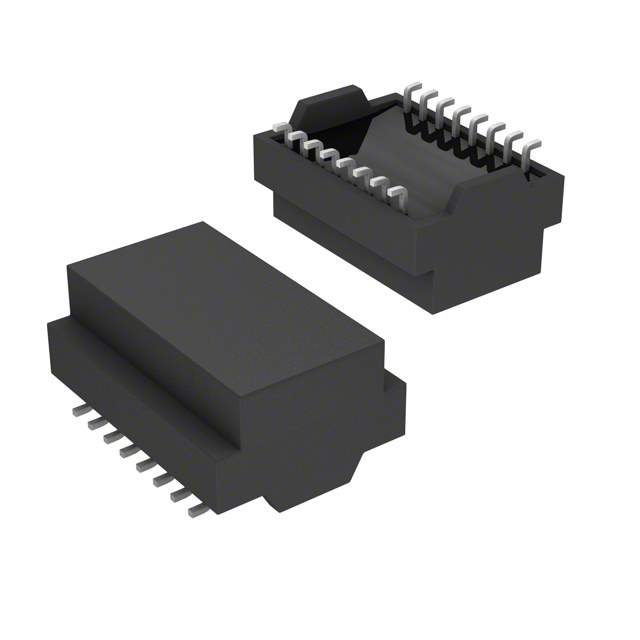

HX2326FNLT Real Image
Same model may have multiple batches, images only for reference.

HX2326FNLT

Part No HX2326FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX/RX / 120µH, 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HX2326FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 120µH, 350µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.236" (5.99mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-3793-1,553-3793-2,HX2326FNLT-ND,553-3793-6
Standard Package 600
Win Source Part Number 967723-HX2326FNLT
Ultra Librarian 3D Model Ultra Librarian HX2326FNLT CAD Model

Description

The HX2326FNLT transformer from Pulse Electronics Network is a LAN 10/100 Base-T transformer that comes in a tape & reel package.

  • Inductance: 120μH and 350μH
  • Temperature Range: -40°C to 85°C
  • Seated Height: 0.236" (5.99mm)
  • Dimension: 0.500" L x 0.358" W (12.70mm x 9.09mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Ideal for: Use in various electronic applications that require a LAN 10/100 Base-T transformer
