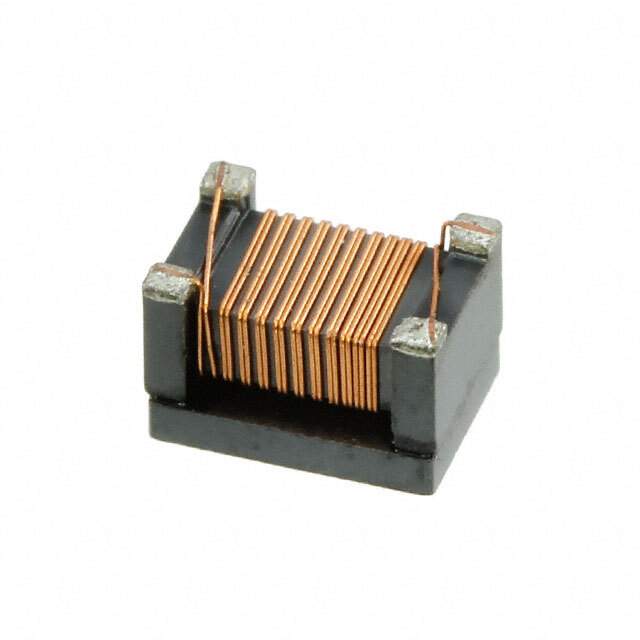

PE-1812ACC101STS Real Image
Same model may have multiple batches, images only for reference.

PE-1812ACC101STS

Part No PE-1812ACC101STS
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 200MA 2LN 7.5KOHM SMD / 2 Line Common Mode Choke Surface Mount 7.5 kOhms @ 10 MHz 200mA DCR 2Ohm
Datasheet
PE-1812ACC101STS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Pulse Electronics
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 7.5 kOhms @ 10 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 2Ohm
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 553-2566-2,553-2566-1,553-2566-6
Standard Package 500
Win Source Part Number 1329423-PE-1812ACC101STS
Ultra Librarian 3D Model Ultra Librarian PE-1812ACC101STS CAD Model

Description

The Pulse Electronics 1329423-PE-1812ACC101STS is a signal line common mode choke filter with a horizontal, 4 PC pad case/package.

  • Manufacturer: Pulse Electronics
  • Case/Package: Horizontal, 4 PC pad
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Max Height: 0.118" (3.00mm)
  • Mounting Type: Surface Mount
  • Impedance: 7.5 kOhms @ 10 MHz
  • DC Resistance (DCR) (Max): 2Ohm
  • Temperature Range: -40°C ~ 125°C
  • RoHS Compliant: Yes
