Same model may have multiple batches, images only for reference.

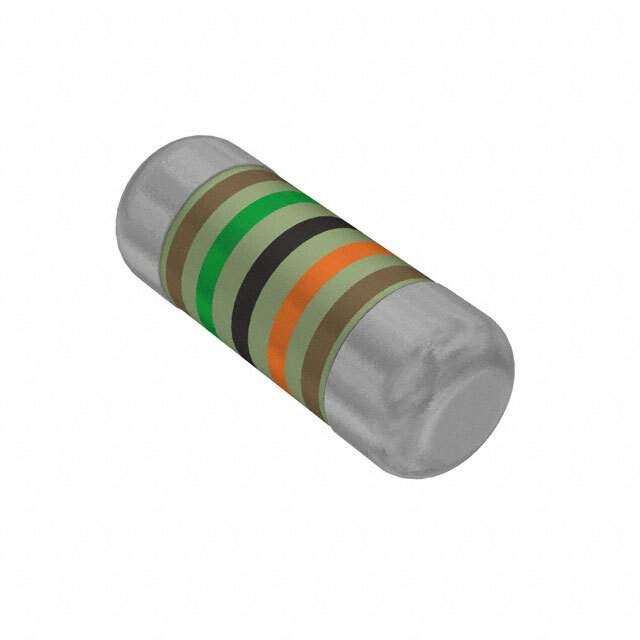

SMM02040C1503FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C1503FB300

Part No SMM02040C1503FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description Res Thin Film 0204(1406) 150K Ohm 1% 0.25W(1/4W) ±50ppm/°C Sulfur Resistant Melf Pad SMD Automotive Medical T/R / RES 150K OHM 1% 1/4W 0204
Datasheet
SMM02040C1503FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Status Active
Resistance (Ohms) 150k
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C to 125°C
Case / Package MELF
Number of Terminations 2
Win Source Part Number 1098521-SMM02040C1503FB300
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SMM0204
Introduction Date March 23, 2006
ECCN EAR99
Country of Origin Germany
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SMM02040C1503FB300 CAD Model

Description

The Vishay SMM02040C1503FB300 is a thin-film resistor.

  • Power Rating: 0.25W or 1/4W
  • Resistance: 150k ohms
  • Tolerance: ±1%
  • Features: Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
  • Temperature Coefficient: ±50ppm/°C
  • Case/Package: MELF
  • Win Source Part Number: 1098521
  • Status: Active
  • Popularity: High
  • Halogen-Free: Compliant
  • Manufactured in: Germany
