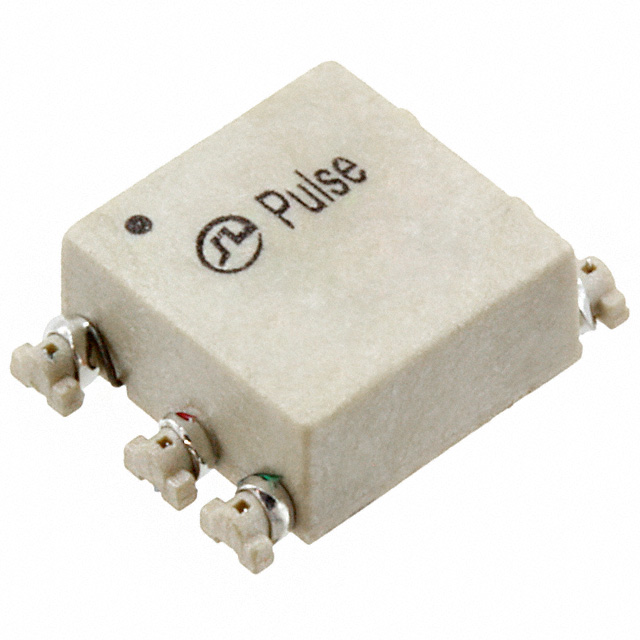

PA0173NLT Pulse
Same model may have multiple batches, images only for reference.

PA0173NLT

Part No PA0173NLT
Manufacturer Pulse
Catalog Specialty Transformers
Description XFRMR GATE DRIVE 1:1:1 SMD
Datasheet
PA0173NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Inductance 980 µH
Mounting Type Surface Mount
Size / Dimension 0.340" L x 0.330" W (8.64mm x 8.38mm)
Height - Seated (Max) 0.160" (4.06mm)
Weight 0.02 oz (0.57 g)
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 267321-PA0173NLT
Ultra Librarian 3D Model Ultra Librarian PA0173NLT CAD Model

Description

The 267321-PA0173NLT is a specialty transformer designed for various applications.

  • Category: Transformers - Specialty Transformers
  • Package: Tape & Reel
  • Size/Dimensions: 0.340" L x 0.330" W (8.64mm x 8.38mm)
  • Seated Height: 0.160" (4.06mm)
  • Inductance: 980 μH
  • Weight: 0.02 oz (0.57 g)
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Manufacturer: Pulse
  • Status: Active
