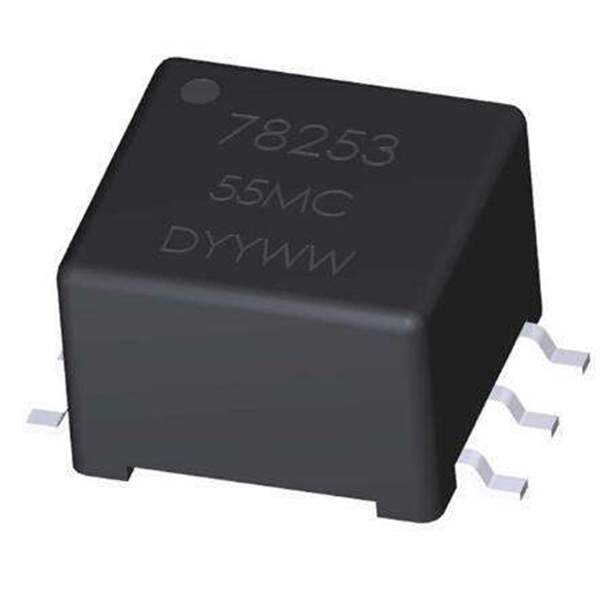

78253/35MVCMurata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

78253/35MVC

Part No 78253/35MVC
Manufacturer Murata Power Solutions Inc.
Catalog Specialty Transformers
Description TRANSFORMER 142UH MAX253 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Murata Power Solutions Inc.
Category Transformers Specialty Transformers
Package Box
Product Status Not For New Designs
For Use With/Related Products MAX253
Mounting Type Surface Mount
Size / Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.260" (6.60mm)
Weight 0.035 oz (1 g)
Win Source Part Number WS1210983-78253/35MVC
Ultra Librarian 3D Model Ultra Librarian 78253/35MVC CAD Model

Description

The 78253 series of converter transformers are specifically designed for use with the MAX253 chip set to provide isolated power supplies. The 5V version can supply 1W and the 3.3V version can supply 500mW. A centre tapped secondary winding allows for full bridge, half bridge or voltage doubling.
